VS-GP series intelligent industrial videoscope
Probe diameter: 0.95mm~8mm
Pipeline length: 1~10m(other customized)
Camera pixel: ≥1.0MP
Articulation:360° full way articulation
suitable for Aerospace manufacturing，Car manufacturer，Industrial manufacturing，Wind power, etc
Pipeline length: 1~10m(other customized)
Camera pixel: ≥1.0MP
Articulation:360° full way articulation
suitable for Aerospace manufacturing，Car manufacturer，Industrial manufacturing，Wind power, etc

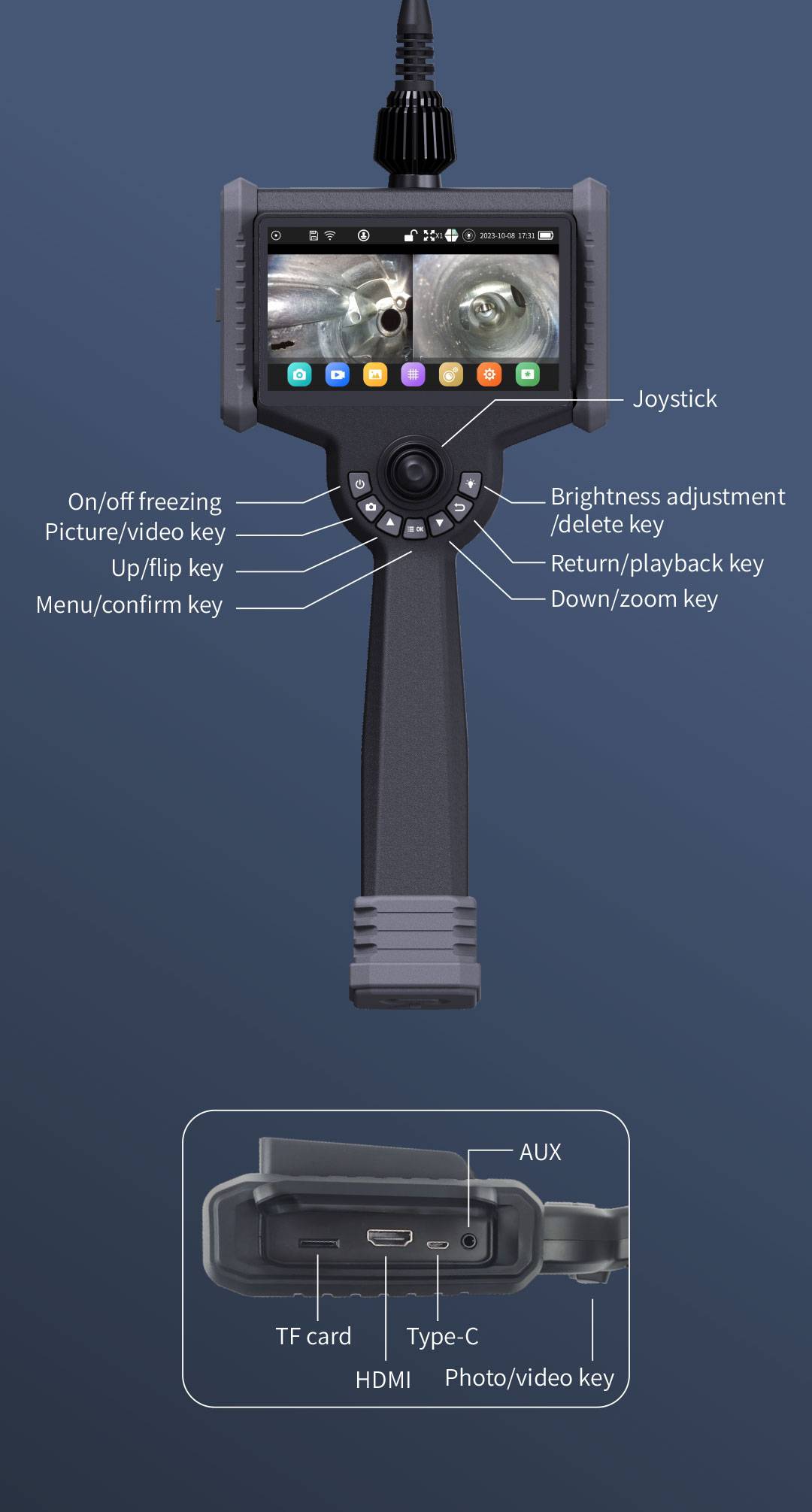

Introduction to VS-GP button
6" FHD Touch screen
1920X1080 pixel display
Dual operation of screen buttons
Dual operation of screen buttons
Quick switching between single/dual view
- Click once to hide the menu icon on the screen
- Click twice on the screen to switch between single and dual camera views
Built in storage
To prevent data loss
Support for TF cards Increase storage space
Support for TF cards Increase storage space
Megapixel
Capture every detail with new technology camera
Front LED lighting
8 degree brightness
High density tungsten wire material
360 degree ergonomic designs structure with good durability and corrosion resistance
IP67 waterproof and oil proof
The snake tube has the performance of heat insulation and chemical corrosion protection line
and can easilycope with the working environment with oil and water stains
Use 18650 battery
Long term endurance, coping with various complex environments and improving efficiency
Application
It has a wide range of applications and can be used in a variety of endoscope detection scenarios
| Product name | VS-GP HD portable endoscope | ||
| Advantage | 360° full way articulation | ||
| Rear high power LED optical fiber illumination | |||
| Quick to interchange different types of probes | |||
| Support WIFI（Optional） | |||
| 0.95mm~6mm probe diameters for optional | |||
| Mega pixel HD camera | |||
| 6″ HD large screen | |||
| Use 4pcs 18650 batteries,Working time ≥ 8 h | |||
| Function | Video recording function | ||
| Photograph function | |||
| Time Watermark | |||
| 8 level brightness | |||
| Support multiple system languages | |||
| Analog scale | |||
| Use environment | Aerospace manufacturing，Car manufacturer，Industrial manufacturing，Wind power | ||
| Probe | Wear resistant four layer tungsten wire weave | ||
| 1、High density braid outer layer 2、Flexible polyurethane inner layer 3、EPD Merosion resistant tubes 4、Compressive steeling 5、Guide steel wire | |||
| Probe is waterproof, oil resistant and anti corrosion It can work normally in water or oil for 30 minutes continuously. | |||
| Camera | IP67 protection grade | ||

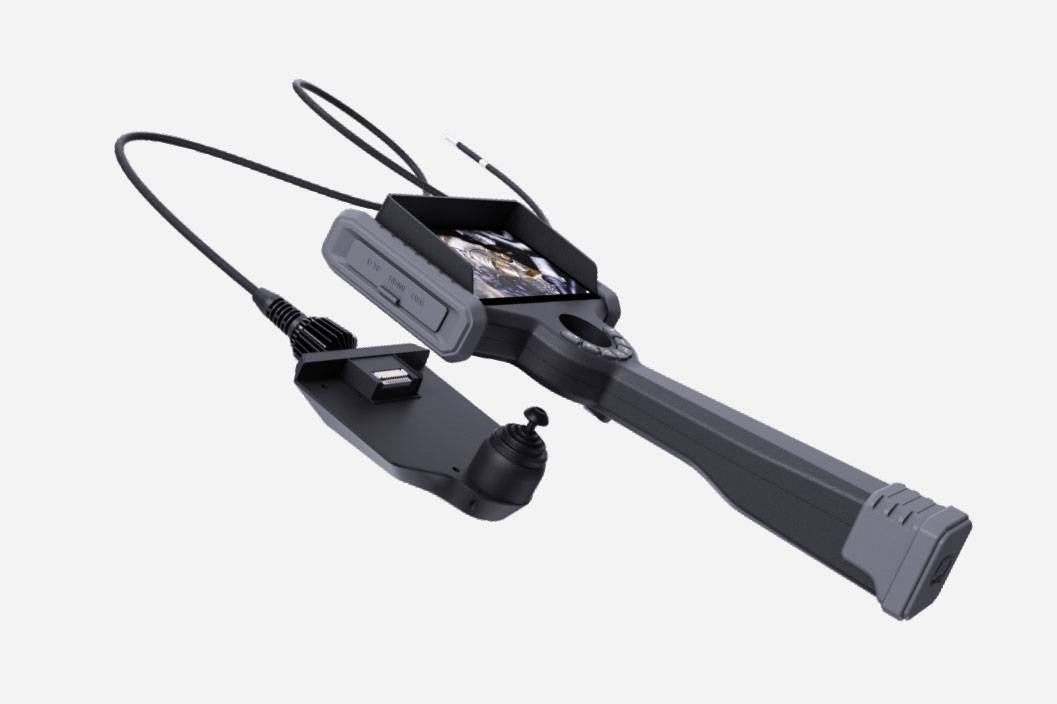

| Direct view/Side view/Dual view probe/Interchangeable probe | |||
| Host | HD large screen | ||
| Product technical parameters | Host | Display | 6＂ HD large screen（1920x1080） |
| Dimension | 375*175*78mm | ||
| Output | Type-C, TF card slot, HDMI interface, AUX interface | ||
| Power | ≥8h | ||
| IP Grade | IP54 | ||
| Operating temperature | -20℃~50℃, Low temperature without preheating | ||
| Storage Temperature | -20℃-60℃ | ||
| Relative Humidity | Max 90%, No condensation | ||
| Storage card | TF card 32GB(Other customized) | ||
| Camera Probe | Probe Diameter | 0.95mm~8mm | |
| Pixel | ≥1.0MP | ||
| Length | 1~10m(other customized) | ||
| Articulation | 360° full way articulation | ||
| Max swing head angle | ≥180° | ||
| DOF | 3mm~30mm/3mm~70mm/7~150mm/12~200mm/50~infinity | ||
| FOV | 90°/120°/140°(Optional) | ||
| Viewing angle | Front view/Side view/Dual view probe | ||
| Illumination | Rear high power LED optical fiber illumination | ||
| Operating Temperature | -20℃~70℃ | ||
| IP Grade | IP67 | ||
| System / software | Image / video format | Image:JPEG(JPG), Video:AVI | |
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions | ||
| System language | Chinese,English,German,French,Russian,Spanish,Japanese and customized |
