In high-end manufacturing, railway transit, heavy equipment assembly lines, and equipment maintenance, a persistent industry challenge remains: the inability to directly inspect the interiors of large cavities, ultra-long pipelines, deep-cast bores, and sealed vehicle conduits. Traditional inspection methods often require costly disassembly and extended equipment downtime, while conventional borescopes are limited by short insertion tubes, restricted articulation, and incomplete inspection coverage. As a result, critical defects such as cracks, corrosion, porosity, and foreign object contamination may remain undetected, affecting product quality, operational reliability, and workplace safety.
As a long-standing expert in industrial visual non-destructive testing (NDT), Shenzhen VSNDT Co., Ltd. has developed its professional inspection brand, VSNDT. Leveraging proprietary core technologies in optical imaging, long-range signal transmission, and motorized articulation, VSNDT has launched a comprehensive lineup of industrial borescopes featuring custom insertion tubes up to 30 meters and 360° Full-Way motorized articulation. Equipped with robust configurations—including a full spectrum of ultra-slim probes from 0.75 mm to 8 mm, high-definition imaging, intelligent dimensional measurement, and an IP67 industrial protection rating. These features make VSNDT an ideal inspection solution for industries including metal casting, railway transportation, precision manufacturing, and automotive production.
Unlike conventional borescopes on the market—which are typically limited to under 10 meters, prone to steering lag over long distances, and restricted in articulation angles—VSNDT has re-engineered its systems from the hardware level up. Two core flagship capabilities empower the brand to adapt seamlessly to complex industrial environments:
The entire insertion tube utilizes a multi-layer composite reinforced structure. The innermost layer combines high-purity optical fibers with an oxygen-free copper composite transmission core, ensuring zero-latency synchronization of video feeds and steering control signals without image distortion—even at an ultra-long distance of 30 meters. The middle layer features a high-density, tungsten-braided spiral protective sheath that resists elongation and compression, enduring tens of thousands of sharp bends while remaining impervious to workshop oil stains and metal debris. The outermost layer consists of an oil- and corrosion-resistant silicone PVC sleeve, tailored for harsh industrial environments characterized by high temperatures, humidity, dust, and mild acids or alkalis.
For deep inspection scenarios exceeding 10 meters—such as boiler headers, large cooling pipelines, long rail transit ventilation ducts, and deep cavities in heavy castings—the 30-meter insertion tube can reach the far end in a single pass. This eliminates the need for tedious, segmented insertions, boosting inspection efficiency by over 60% while significantly minimizing equipment downtime and production line delays. Furthermore, the brand supports flexible length customizations ranging from 0.5 meters to 30 meters. Short probes cater to the microscopic quality control of miniature precision parts, while long probes cover deep field inspections of heavy, large-scale equipment, allowing a single brand to fulfill all long- and short-distance demands.

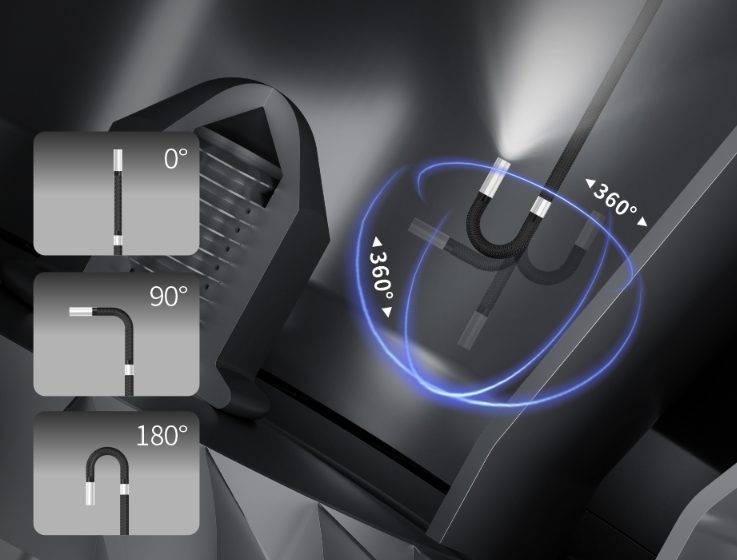

Most general-purpose borescopes only support basic two-way or four-way steering, making it exceptionally difficult to adjust the viewing angle around pipe elbows, deep blind holes, or structural dead zones, which frequently results in missed defects. Every probe in the VSNDT lineup features a high-precision motorized articulation drive mechanism. Even when deployed with a 30-meter ultra-long insertion tube, the probe still achieves smooth, lag-free 360° rotation and wide-angle articulation. When navigating multi-bend pipelines, interlocking cavities, or narrow crevices, operators can effortlessly adjust the lens orientation via touchscreen controls to scan every square millimeter of the internal walls, completely eliminating visual blind spots to capture microscopic cracks, pores, burrs, rust, and sand inclusion.
To complement these strengths, VSNDT has built a comprehensive product matrix:
K Series: Portable touchscreen borescopes tailored for rapid, high-volume production line inspections.
P Series: Modular, large-screen split-type systems optimized for fixed factory quality control stations.
TJ Series: Intelligent measurement models capable of quantifying defect length, depth, and surface area, complete with image and video archiving for full data traceability.
The entire product family features high-brightness, rear-mounted fiber-optic illumination coupled with a proprietary metallic halation suppression algorithm, preventing reflections from bright metal surfaces from obscuring defects. Furthermore, the ultra-slim 0.75 mm miniature probe can glide into microscopic cooling holes and precision mold gaps. Balancing micro-precision inspections with deep heavy-duty equipment evaluations, VSNDT delivers performance that rivals high-end global brands at a highly competitive cost, requiring minimal training for quality control personnel to achieve operational proficiency.
Mechanical castings typically feature deep blind holes, interlocking cavities, and enclosed flow channels. During the casting process, defects such as porosity, blowholes, sand inclusion, internal cracks, and residual burrs can easily form. If these flawed components advance to the assembly phase, they can cause system jamming, oil leaks, or catastrophic equipment failure. Historically, enterprises relied on destructive sampling methods, which incurred exorbitant material costs and carried a high risk of letting defects slip through.
The VSNDT 30-meter ultra-long borescope can penetrate deep into the complex internal cavities of large pump bodies, valve blocks, heavy-duty machine tool housings, and construction machinery hydraulic castings to conduct thorough 360° rotating inspections. Conversely, the ultra-slim, short-length variants handle high-volume batch inspections of small, precision aluminum and steel castings—completing a comprehensive, non-destructive internal cavity check in under 10 seconds. Today, numerous domestic casting industrial parks and machinery processing plants have standardized on VSNDT borescopes as a mandatory final inspection tool, dramatically lowering defect rates.
The maintenance of high-speed rails, subways, and urban transit vehicles involves numerous elongated, sealed structures. The cabin ventilation ducts, braking hydraulic lines, traction motor cavities, chassis frame voids, and heat exchanger tube bundles frequently exceed 15 meters in length, making conventional short-tube borescopes highly inefficient.
The customizable VSNDT 30-meter borescope is perfectly suited for these long-range transit maintenance tasks. Without dismantling cabin panels or chassis assemblies, operators can feed the probe through pre-existing inspection ports to fully evaluate internal wall corrosion, debris blockages, and weld seam cracks. Its 360° articulation easily navigates T-junctions and sharp elbows, allowing maintenance crews to rapidly locate potential fluid leaks, motor blade wear, and foreign object debris (FOD). As a mainstream choice for rail transit NDT, VSNDT is widely deployed by rolling stock manufacturers and maintenance depots for both pre-factory quality assurance and routine safety overhauls.
High-end precision manufacturing—including semiconductor molds, hydraulic valve blocks, precision gears, and miniature aerospace components—demands extreme inspection accuracy and rigorous probe dimensions due to exceptionally tight apertures and intricate internal fluid channels.
VSNDT’s ultra-slim probes, ranging from 0.75 mm to 4 mm, can enter the microscopic cooling channels of molds and the elongated flow pathways of hydraulic valves, utilizing high-definition imaging to clearly identify internal burrs, scores, and corrosion spots. The intelligent measurement models precisely quantify scratch depths and pore dimensions, providing vital data to support manufacturing process improvements. While short-tube portable models are ideal for spot-checking assembly lines in cleanrooms, the 30-meter long-tube variants handle deep internal diagnostic overhauls of massive precision machinery, covering the full spectrum of dimensional inspection needs across the industry.
A vehicle comprises tens of thousands of high-precision components, with the engine, transmission, battery pack, cooling circuits, and structural body cavities all forming sealed structures that act as focal points for automotive quality assurance.
Internal Combustion Engines (ICE): VSNDT borescopes are used to inspect engine cylinder walls, combustion chambers, turbocharger housings, and transmission valve bodies to identify cylinder scoring, internal cracking, casting impurities, and gear wear.
New Energy Vehicles (NEVs): The technology seamlessly adapts to new inspection scenarios like battery pack enclosure welds, extensive liquid-cooling pipe networks, and high-voltage conduits. The 30-meter probe can traverse the entire vehicle's cooling circuit in a single pass, while the 360° articulation checks for welding porosity, residual metal chips, and sealing defects within the battery pack, mitigating short-circuit and overheating hazards before they materialize.
By eliminating the need to dismantle expensive components for inspection, VSNDT significantly reduces testing costs, making it a stable, long-term choice for leading automakers and tier-1 component suppliers.
As global manufacturing rapidly shifts toward intelligent manufacturing and standardized, non-destructive quality control, industrial borescopes have transitioned into an indispensable asset on the factory floor. Operating as an original manufacturer rather than an OEM white-label distributor, Shenzhen VSNDT Co., Ltd. (VSNDT) manages everything from insertion tubes and probes to imaging mainframes through fully independent, in-house R&D and production. Its two defining capabilities—the 30-meter ultra-long probe and 360° Full-Way articulation—directly solve long-standing industry pain points while seamlessly addressing the diverse needs of the mechanical casting, rail transit, precision manufacturing, and automotive manufacturing sectors.
For industrial enterprises, integrating VSNDT industrial borescopes delivers a threefold advantage in cost reduction and operational efficiency:
Completely Non-Destructive Testing: Eliminates workpiece scrapping and costly reassembly labor caused by destructive teardowns.
One-Pass Efficiency: The 30-meter long-range capability combined with 360° blind-spot-free inspection drastically reduces missed defects, cutting down on aftermarket warranty claims and product reworks.
Industrial-Grade Durability: Built to withstand harsh workshop conditions, the equipment features low maintenance overhead, lowering equipment replacement frequencies and lifecycle costs.
Looking ahead, as high-end equipment, new energy vehicles, and rail transit industries continue to expand, the demand for non-destructive inspection of sealed cavities and ultra-long pipelines will grow exponentially. VSNDT remains committed to advancing technical boundaries in optical imaging and long-range transmission, delivering higher-performance, all-scenario industrial borescopes that provide global industries with highly reliable, localized, and efficient visual inspection solutions.
