Gearbox Inspection

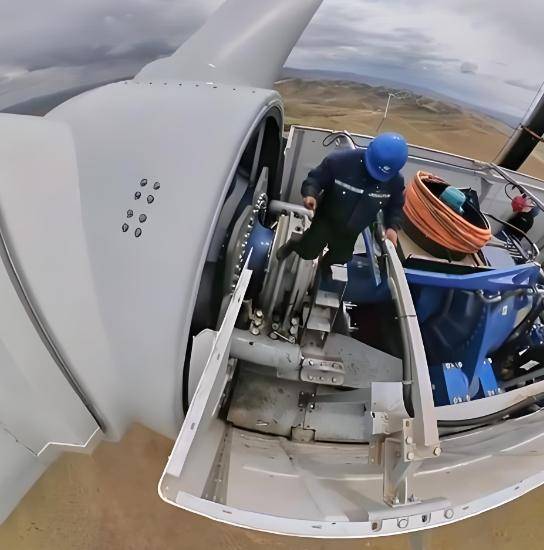

Wind turbine gearboxes are high-risk components for failure. Traditional inspection methods require disassembling the bearing housing and opening the gearbox cover, taking 2-3 days per unit and potentially causing secondary damage. VSNDT Industrial Endoscopes, using flexible probes with a diameter of 4-8mm, can penetrate deep into the gearbox to perform the following inspections without disassembly:
Gear surface wear: High-definition imaging technology clearly reveals defects such as tooth surface scuffing and pitting.
Bearing condition: Observe bearing roller defects, abnormal clearance, and lubricant contamination.
Sealing inspection: Inspect for leakage at gearbox mating surfaces, oil seals, and other areas.
Case study: After adopting VSNDT endoscopes, an offshore wind farm saw a 75% increase in early gearbox fault detection rate, preventing multiple sudden downtime incidents.
Blade Inspection: Large wind turbine blades can reach lengths of 80 meters and contain complex internal reinforcing rib structures and bonding areas, creating blind spots in traditional ultrasonic testing. VSNDT Industrial Endoscopes achieve precise inspection through the following technological breakthroughs:
360° Rotating Lens: Provides deep penetration into hidden areas such as blade roots and leading-edge webs, clearly revealing defects like delamination, debonding, and bubbles.
Laser Thickness Measurement: Quantifies changes in composite material thickness to assess structural health.
AI-Assisted Identification: Automatically marks suspicious areas using AI algorithms, improving detection efficiency by 50% and reducing the false negative rate to below 0.5%.
Case Study: A wind farm in Jiangsu province discovered 13 early delamination defects through a comprehensive survey, allowing for timely repairs and preventing blade breakage.
Generator Inspection: Aging, loosening, or foreign object intrusion in generator stator winding insulation can lead to short circuits. VSNDT Industrial Endoscopes, accessed through stator ventilation holes, achieve the following detections with 0.1mm-level image resolution:
Insulation Cracks: Identifies potential issues such as cracking and carbonization of the winding end insulation.
Support Block Displacement: Detects winding vibrations caused by loose or displaced support blocks.
Foreign Object Intrusion: Locates conductive foreign objects such as core fragments and conductive particles.
Case Study: Inspection at a wind farm revealed loose winding ends in three generators that had been in operation for five years. Timely tightening prevented repair losses exceeding 1 million yuan.
Bearing Inspection: Wind turbine bearings bear the weight and rotational force of the rotor, and their operating condition directly affects system stability. VSNDT Industrial Endoscopes can observe the following bearing conditions:
Lubrication Condition: Detects discoloration, emulsification, or uneven distribution of lubricating grease.
Wear Degree: Quantifies fatigue spalling, pitting, and other defects on the raceway and rolling element surfaces.
Vibration Analysis: Combines spectral analysis to determine abnormal bearing clearance or cage damage.
Tower Interior: Inspects for corrosion, cracks, deformation, and other structural problems to ensure support stability.
Tower Foundation Concrete: Observes cracks, steel reinforcement corrosion, and loose anchor bolts to assess foundation bearing capacity.

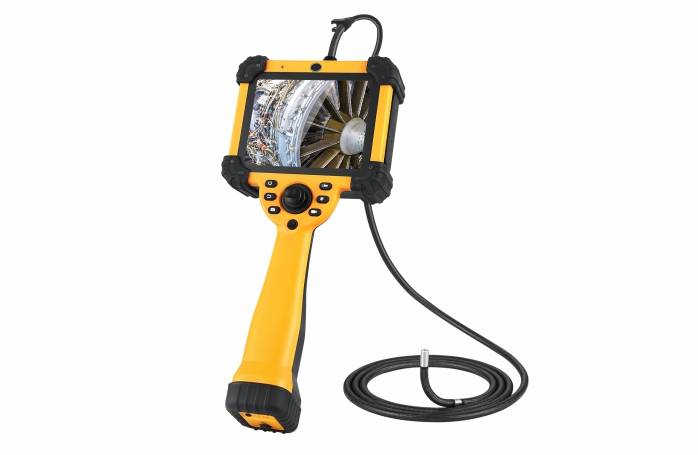

High-Definition Imaging: Equipped with a CCD image sensor, it can clearly display details such as gear tooth wear and bearing raceway damage even in dimly lit environments such as gearboxes, avoiding missed detections due to blurry images.
Omnidirectional Probe: A pure electric servo guide combined with a tungsten wire precision transmission mechanism enables continuous 360° probe rotation, allowing for flexible access to complex gearbox cavities, blade internal channels, and other traditionally blind spots, improving defect detection rates.
Rugged Industrial Architecture:
Materials: The probe housing is made of titanium alloy, combining high strength with lightweight design, offering excellent pressure and wear resistance.
Environmental Adaptability: Waterproof, dustproof, and oil-proof, it can operate stably in a wide temperature range of -25℃ to 100℃, meeting the testing needs of extreme wind farm environments.
Flexible Application Configuration:
Probe Diameter: Standard sizes such as 4mm and 6mm are available, and a customized 0.66mm ultra-fine probe can be customized to adapt to different testing space requirements.
Pipeline Length: Supports interchangeable pipelines of different lengths to meet various depth testing scenarios such as gearboxes and blades.
Software Functions: Integrates image rotation, white balance settings, exposure control, and intelligent measurement functions to adapt to complex testing scenarios.
* **Operation and Maintenance Model Transformation:** Driving the transformation of wind power operation and maintenance from "fault repair" to "predictive maintenance," a wind farm that adopted VSNDT endoscopes saw a reduction of over 30% in average annual maintenance costs per unit and a 40% reduction in downtime.
**Significant Economic Benefits:**
* **Reduced Unplanned Downtime:** Early fault detection avoids power generation losses caused by sudden shutdowns.
* **Lower Maintenance Costs:** Precise defect location reduces over-maintenance and the frequency of parts replacement.
* **Extended Equipment Lifespan:** Timely maintenance extends the lifespan of core components such as gearboxes and blades.
**Large-Scale Application Recognition:** VSNDT industrial endoscopes have been widely used in numerous large-scale wind farms in China. Their technical performance has been highly recognized by operation and maintenance teams, making them the preferred tool for "visualizing" wind power equipment.
