The precision casting industry encompasses investment casting, die casting, sand casting, lost-wax casting, and other sub-categories. Various castings feature complex internal cross-holes, deep cavities, blind holes, and narrow runners. After casting formation, internal defects such as sand holes, burrs, shrinkage cavities, slag inclusions, cracks, and residual sand cores cannot be observed with the naked eye.Traditional destructive sectioning inspection wastes large quantities of finished products, while manual light-assisted visual inspection suffers from severe missed detection, directly leading to product scrapping, customer returns, and substantial economic losses for foundries. Casting aperture spans are extremely wide: micro precision valve body castings have apertures of less than 1mm, while large engineering machinery casting cavities can reach several centimeters in diameter. Small desktop castings only require 0.5-meter short insertion tubes, while large heavy-duty casting deep cavities need tubes of 10 meters or more. A single-specification borescope simply cannot cover the full range of casting quality inspection needs. VSNDT K Series industrial video borescopes feature an eight-grade probe matrix from 0.78mm to 6mm, standard insertion tubes from 0.5m to 10m, and a customizable ultra-long tube system up to 30m, providing one-stop non-destructive quality inspection from micro precision castings to large heavy-duty castings, becoming the core standardized quality inspection equipment for precision casting factories.
Micro precision investment castings are the mainstream products in today's high-end casting market. Internal runner apertures of hydraulic micro valve bodies, medical device castings, aviation small accessories, and automotive fuel injector castings are generally in the 0.8–2.5mm range. Conventional borescope probes are too thick to enter, forcing reliance on destructive sampling inspection, with finished product loss rates remaining high. The VSNDT K Series 0.78mm, 1.2mm, and 1.8mm ultra-fine probes perfectly solve the micro-hole casting inspection challenge. The 0.78mm extreme ultra-fine probe is specifically designed for ~0.8mm micro runners, easily penetrating to the bottom of blind holes and cross-holes, clearly capturing tiny sand holes, burr residue, and fine shrinkage cavities on runner inner walls. Full inspection can be completed without destroying the casting, reducing finished product scrap rates by 60%. The 1.2mm and 1.8mm probes offer greater flexibility, adapting to multi-bend complex cross-runners, moving through without jamming or scratching polished casting inner walls. Inspection images are synchronized in real time to the main unit screen, allowing quality inspectors to quickly mark defect locations, screen out non-conforming castings, and prevent them from flowing into the next processing step. The 0.5m–2m short insertion tubes paired with ultra-fine probes are suitable for desktop batch casting re-inspection in workshops. The short, lightweight tubes do not occupy space at assembly line workstations, and the number of castings inspected per person per hour increases by 3x, significantly shortening quality inspection labor hours.
Medium and small die-cast and lost-wax castings (automotive engine cylinder heads, transmission housings, hydraulic valve blocks) have apertures concentrated in the 2–4mm range. The K Series 2mm, 2.4mm, and 2.8mm probes are the exclusive selection for this scenario, balancing imaging clarity and bending flexibility. They can penetrate deep blind holes and winding oil channels of castings, investigating internal sand inclusions, cold shuts, internal cracks, and mold release agent residue blockage defects. The 3m–8m medium-long insertion tubes are suitable for vertical deep cavity inspection of medium castings. Castings placed on fixture tables do not need to be flipped; the tube penetrates vertically from the casting opening to the bottom of the cavity, completing a full inner wall scan in one pass, eliminating casting hoisting and flipping procedures and reducing the risk of collision damage to heavy castings.
Large engineering machinery and pump valve heavy-duty castings feature open cavities and depths of several meters, suitable for the K Series 3.9mm and 6mm large-diameter probes. Larger photosensitive chips paired with high-brightness LED light sources ensure clear images even in dark environments deep within cavities, enabling large-area scanning of internal weld seams, gas pores, and corrosion defects inside castings. The 10m standard insertion tubes are suitable for conventional large casting deep cavity inspection. For ultra-deep cavities of large ship castings and heavy pressure vessel castings, customizable ultra-long tubes up to 30m are available, penetrating the entire deep cavity of the casting in one pass without multiple position adjustments, significantly reducing hoisting and transfer frequency of heavy castings and improving workshop production safety.

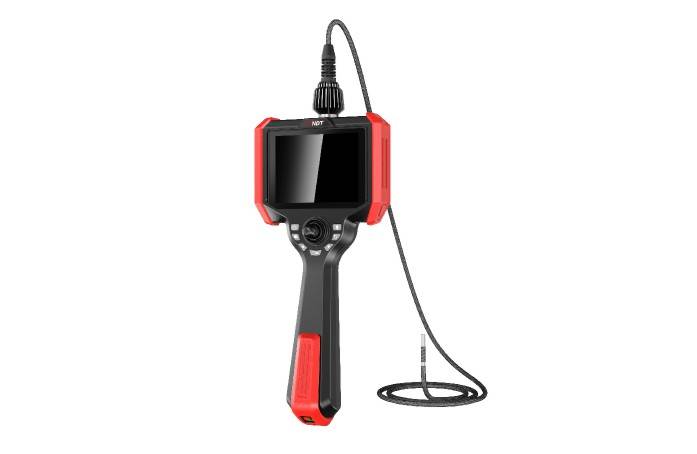

Complete functional configurations meet the standardized quality inspection process needs of foundries. The K Series main unit delivers megapixel high-definition imaging, clearly presenting micron-level tiny defects. The 8-level adjustable cold light source adapts to different reflective materials such as dark cast iron, bright aluminum alloy, and stainless steel castings. The 360° electric articulation leaves no blind spots, enabling observation of casting complex cross-holes from any angle. IP67 waterproof and dustproof rating allows direct insertion into wet casting cavities with cutting fluid and mold release agent residue, enabling inspection without cleaning the workpiece. It supports photo capture, video recording, and defect text annotation. Each casting inspection image is stored separately, generating complete quality inspection archives to meet downstream customer quality traceability requirements. The quick-plug tube replacement design means only one main unit is needed per production line, paired with multiple probes of different diameters and lengths, adapting to full-category casting quality inspection in the workshop without purchasing multiple borescopes, significantly reducing equipment procurement budgets. The outer layer of the insertion tube is made of wear-resistant and scratch-resistant material, tolerating scraping by sharp metal edges of castings, extending service life by more than double in the harsh conditions of foundry dust and oil.
Compared with imported casting-specific borescopes, the VSNDT K Series offers outstanding cost-effectiveness advantages. Equipment of equivalent specifications costs only one-third of imported products. Domestic stock is available for rapid delivery, with short customization cycles for 30m ultra-long tubes. After-sales engineers provide on-site installation and training, and exclusive tube wear-resistance upgrade solutions are offered for foundry dust and oil working conditions. Currently, thousands of precision casting enterprises in China have selected the K Series borescope as their factory-standard quality inspection equipment, covering full-category production inspection of new energy valve bodies, aviation investment castings, automotive die castings, medical device castings, and engineering machinery castings. If you are a precision casting factory quality inspection manager looking to solve the pain points of missed internal defect detection, high finished product loss, and the need for multiple inspection devices for multi-specification castings, the VSNDT K Series full-size matrix borescope provides one-stop coverage of all casting inspection needs. Non-destructive full inspection significantly reduces scrap costs and improves factory yield rates.
