In the field of environmental protection and water purification, internal inspection of water pipes is a key link to ensure water quality safety and prevent pipeline failures. With its excellent technical performance and flexible adaptability, the K series industrial endoscope has become the core tool for water pipe inspection projects of a certain environmental protection and water purification company. The following analyzes how the K series helps the environmental protection and water purification industry achieve efficient inspection from four dimensions: product characteristics, application scenarios, technical advantages and industry value.
High-definition imaging and flexible detection

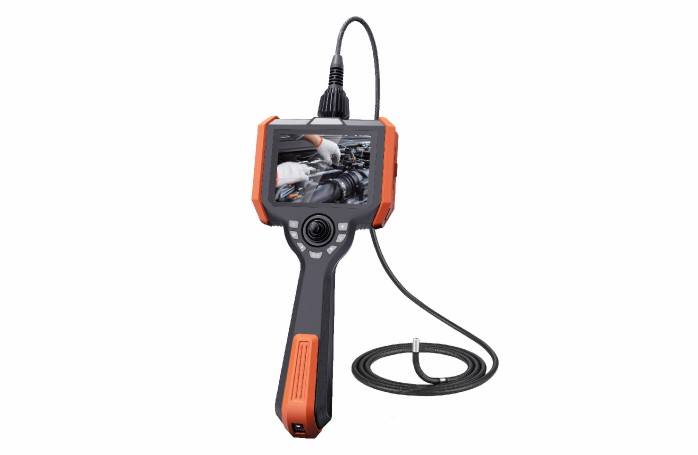

The K series is equipped with a megapixel high-definition camera (1 million pixels) and supports 720P high-definition video recording, which can clearly capture tiny defects on the inner wall of the water pipe, such as corrosion, cracks, sediments or weld defects. Its probe diameter covers 0.95mm to 6mm, and the pipeline length can be customized (1-10 meters). It can penetrate into narrow pipes or long-distance bends to meet the detection needs of different pipe diameters.
360° all-round guidance and waterproof performance
The equipment supports 360° all-round probe steering, with a swing angle of ≥180°, which can accurately locate the detection area. The insertion tube meets the IP67 waterproof standard and can work continuously for more than 30 minutes underwater or in a humid environment, meeting the detection needs of humid scenes such as sewage pipes and rainwater pipes.
Intelligent operation and portable design
Equipped with a 5.7-inch industrial-grade touch screen, supports WIFI wireless transmission and HDMI large-screen output, and realizes remote synchronous observation and data sharing. The body is lightweight (in line with ergonomic design) and can be operated with one hand, making it suitable for outdoor or high-altitude detection scenarios.
In the actual application of an environmental protection water purification company, the K series industrial endoscope mainly solves the following problems:

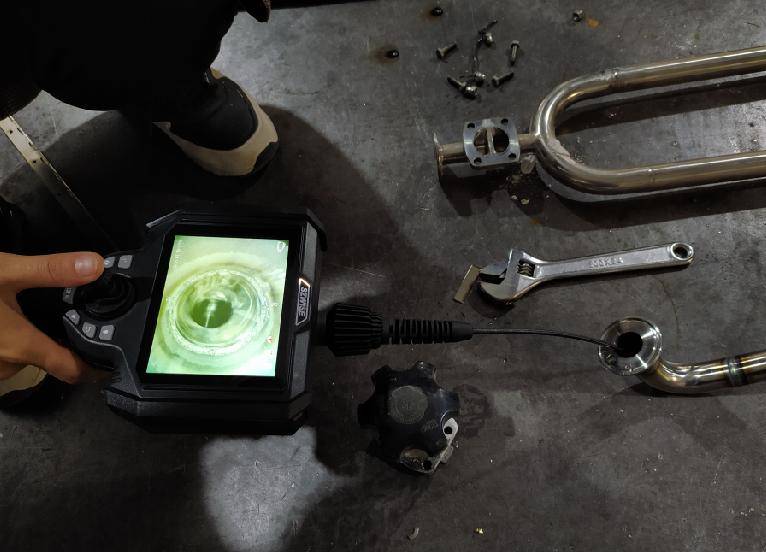

Internal pipe defect detection
Corrosion and sediment identification: Through high-definition imaging, detect the rust, scaling or biofilm adhesion of the inner wall of the water pipe, and evaluate the degree of pipe aging.
Crack and weld inspection: Locate small cracks or incomplete weld defects at the pipe weld to avoid leakage risks.
Pipeline deformation and foreign body inspection: Detect pipeline misalignment, deformation or foreign body blockage to ensure smooth water flow.
Preventive maintenance and data recording
Regularly check the health status of water pipes, establish a defect database, and provide a quantitative basis for maintenance plans.
Supports photography, video recording and data storage, which is convenient for subsequent comparison and analysis, and optimizes cleaning or replacement strategies.
Non-destructive testing (NDT)
Internal inspection can be completed without disassembling the pipeline, reducing maintenance costs and avoiding secondary interference with the water purification system.
Quick adaptation and efficient operation
The insertion tube can be quickly replaced, and one device can be adapted to a variety of pipe diameters, reducing the time for equipment switching.
High-brightness LED lighting (8-level adjustment) and adaptive noise reduction technology ensure clear images in dark environments.
Customized function expansion
Optional ultraviolet/infrared light source, high temperature resistant module (≤300℃) or infrared thermal imaging to meet special detection needs.
Analog ruler and laser measurement technology to achieve quantitative analysis of defect size and improve the professionalism of the test report.
Ensure water quality safety
Early detection of contamination or corrosion on the inner wall of the pipeline can prevent impurities from penetrating into the water supply system and ensure that the water quality meets the standards.
Reduce operation and maintenance costs
Preventive maintenance reduces water outage losses caused by sudden failures.
Non-destructive testing extends the service life of pipelines and reduces replacement frequency.
Industry benchmark application
The successful case of this environmental protection water purification company provides a replicable detection solution for similar companies and promotes the popularization of industrial endoscopes in the field of environmental protection.
The K series industrial endoscope takes "high definition, flexibility, and intelligence" as its core, solves the pain points in water pipe inspection of environmental protection water purification companies, and realizes the transformation from passive maintenance to active prevention. In the future, with the integration of IoT and AI technology, the K series is expected to further integrate functions such as automatic defect recognition and data analysis to create a smarter inspection ecosystem for the environmental protection industry.
