VSNDT Industrial Endoscope Applications in Energy & Power Sector

VSNDT industrial videoscopes leverage three core advantages—high-definition imaging, IP67 fully sealed protection, and 360° flexible articulation—to excel in the harsh operating conditions of the energy and power industry, including high temperatures, high pressure, humidity, and dust. These advanced inspection tools have become indispensable nondestructive testing (NDT) solutions for thermal power, hydropower, wind power, nuclear power, and power grid maintenance.

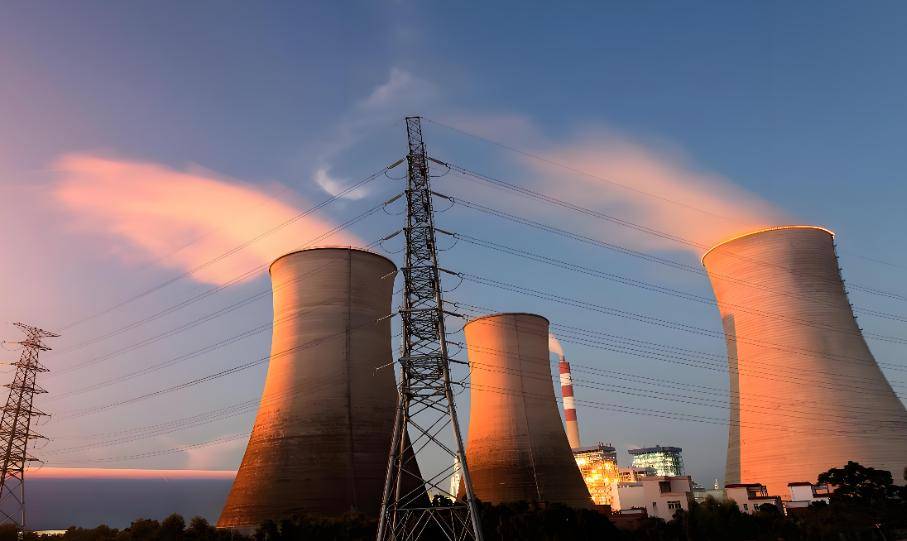

🔥 Thermal Power: Core Equipment Hidden Hazard Detection Boiler Systems

Inspect inner wall corrosion, cracks, scaling, and oxide scale accumulation on the "four tubes" (water wall, superheater, reheater, economizer) to predict tube burst risks; examine tube elbow wear and header weld defects to assess equipment lifespan.

Steam Turbine / Generator

Detect turbine blade and rotor cracks, wear, and foreign object adhesion; inspect generator stator and rotor winding insulation aging, coil blockages, and vent debris to prevent vibration and short-circuit faults.

Auxiliary Machinery & Piping

Check air preheater, denitrification system, and valve internal scaling, corrosion, and jamming; identify inner wall defects in main steam and water supply pipelines to ensure safe medium transportation.

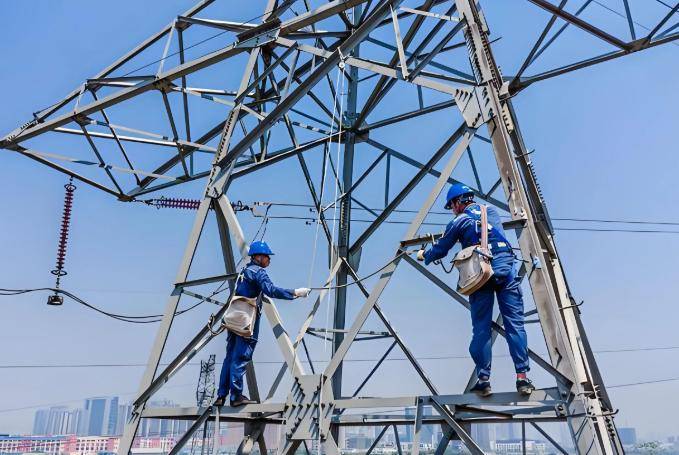

⚡ Power Grid Operation: Visual Maintenance of Power Transmission & Distribution Equipment

Transformers

Conduct internal inspections without lifting the cover to observe winding deformation, insulation aging, iron core rust, and loose connectors.

High-Voltage Switchgear

Examine contact ablation, spring fatigue, insulation dust accumulation and aging, and loose busbar connections to prevent arc and short-circuit accidents.

Cables & Tunnels

Enter cable trenches and pipes to detect outer sheath damage, joint leakage, foreign object intrusion, and insulation aging, reducing grounding and electric leakage risks.

Circuit Breakers / Disconnect Switches

Inspect contact wear, contact surface oxidation, lead wire breakage, and mechanical structure jamming to ensure reliable opening and closing operations.

💨 Wind Power: Safety Inspection of High-Altitude Equipment

Wind Turbine Gearbox

Detect gear and bearing wear, pitting, cracks, and lubricating oil impurities to pre-empt gear breakage and shaft jamming failures.

Generator & Main Shaft

Check generator internal windings and bearing conditions; inspect main shaft weld cracks and loose connecting bolts to reduce the frequency of high-altitude operations.

Blades & Tower

Insert into blade interiors to detect skin delamination, cracks, and gel coat peeling; examine tower weld corrosion and deformation to ensure wind turbine structural safety.

💧 Hydro & Nuclear Power: Precision Testing in Special Environments

Hydropower Equipment

Inspect turbine runner and blade cavitation and cracks; examine pressure steel pipe inner wall corrosion and weld defects; check generator internal and gate sealing conditions.

Nuclear Power Equipment

Adapt to high-radiation, high-cleanliness testing scenarios in conventional island pipelines, valves, and auxiliary equipment to detect corrosion, cracks, and foreign objects, ensuring system stability.

🛠️ Core Technical Advantages for Power Industry Scenarios

• Fully Sealed Protection: IP67 waterproof, dustproof, and oil-resistant design adapts to cable trench water accumulation, switchgear dust, and motor oil contamination, with zero probe penetration damage.
• High-Definition Flexible Imaging: HD wide-angle lens + adjustable strong light fill enables clear imaging in dim environments; 360° electric articulation with over 170° single-side bending ensures blind-spot-free navigation through complex bends.
• Efficient Nondestructive Testing: No equipment disassembly required, supports short-time shutdown or online inspection, single-person handheld operation reduces labor and downtime costs, avoiding secondary damage.
• Data Recording & Traceability: Integrated photo, video, and measurement functions automatically generate reports, supporting defect quantification and historical comparison to facilitate preventive maintenance.

🎯 Application Value

• Safety Assurance: Detect millimeter-level hidden hazards in advance to avoid major accidents such as tube bursts, short circuits, and equipment fractures, ensuring stable operation of power grids and units.
• Cost Reduction & Efficiency Improvement: Reduce disassembly and high-altitude operations, shorten maintenance cycles, and lower operational costs and unplanned downtime losses.
