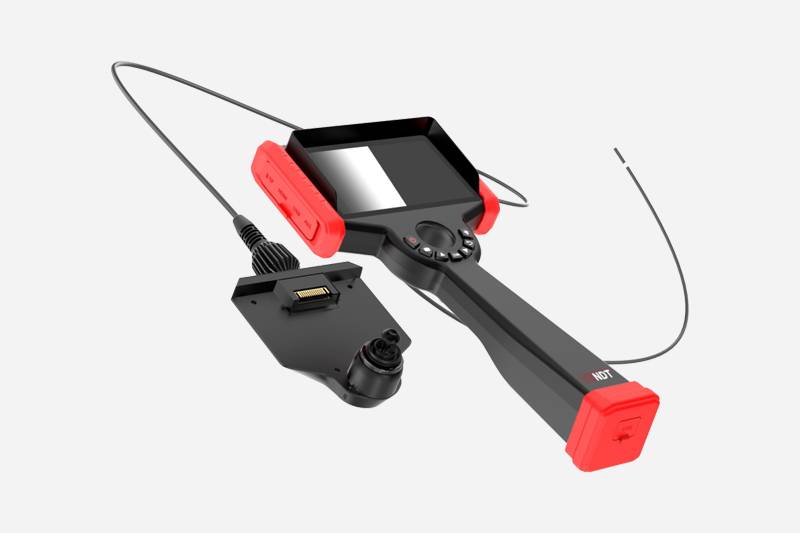

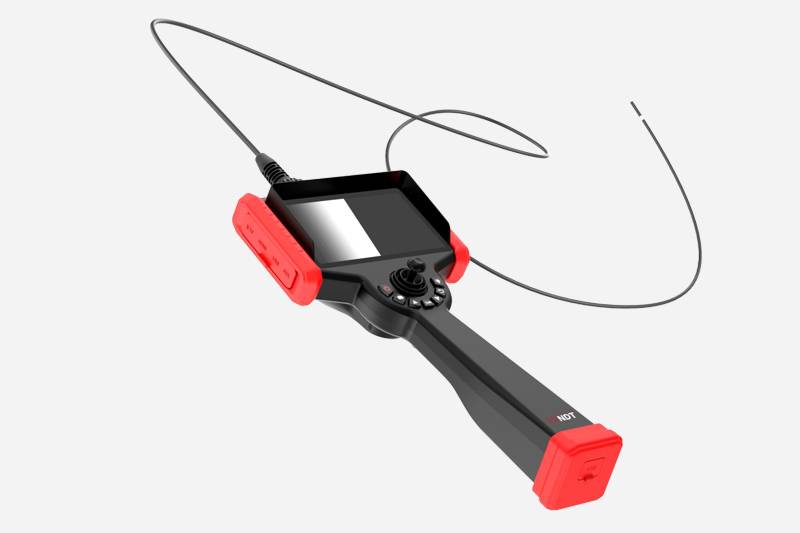

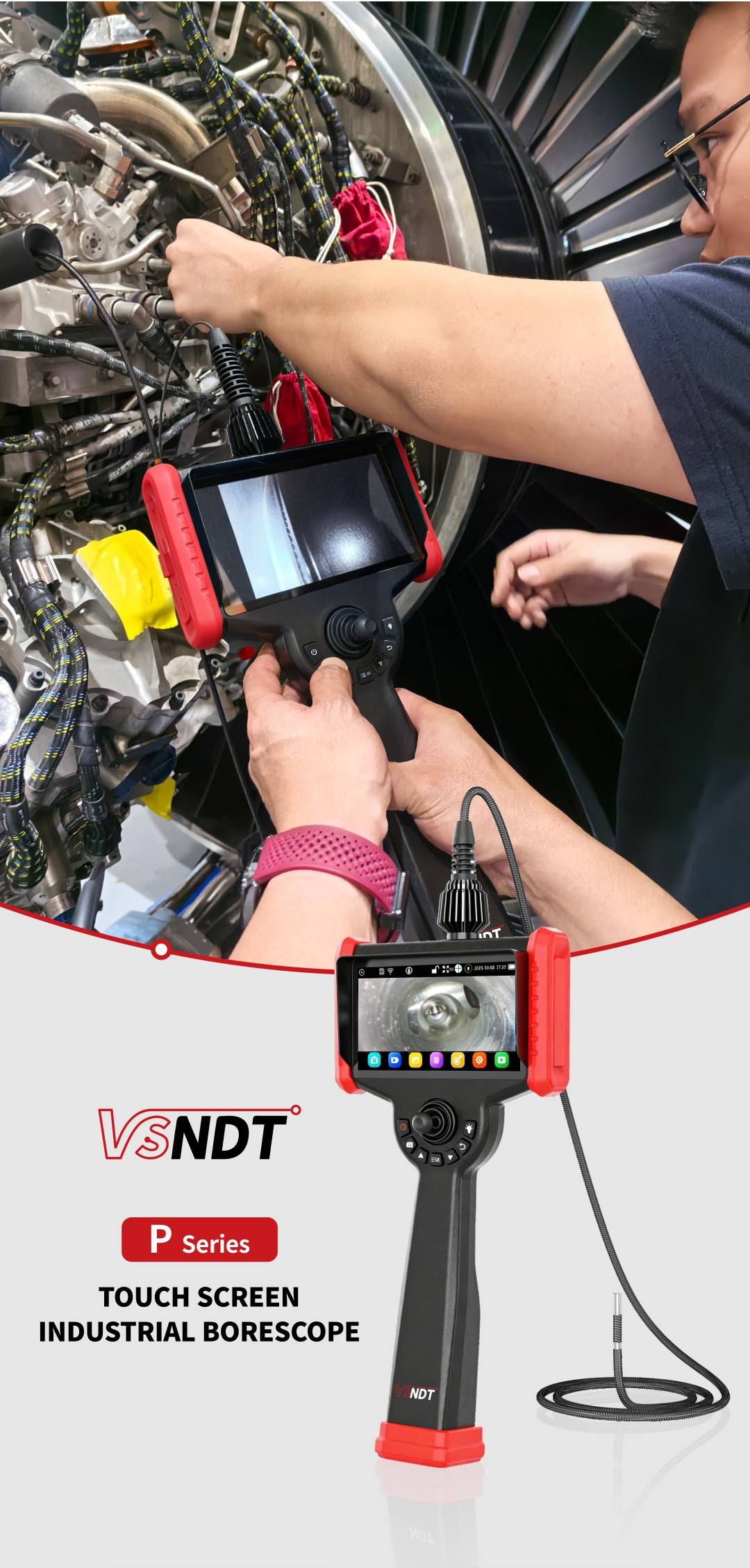

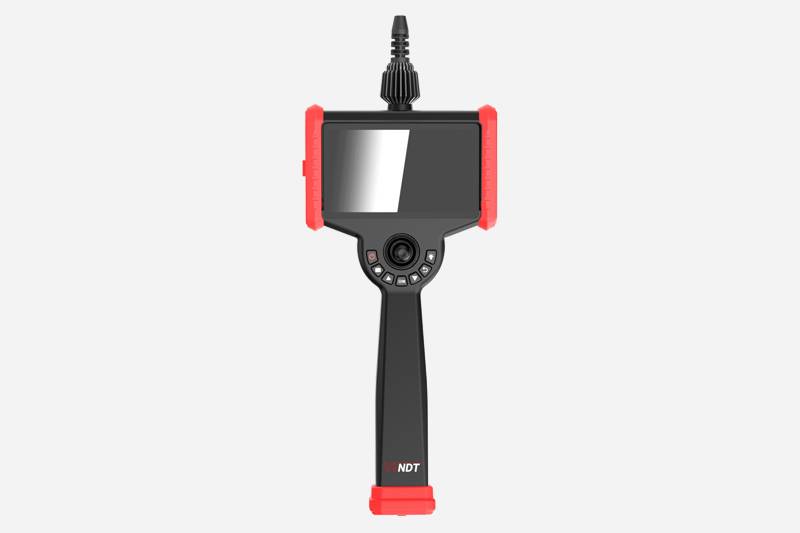

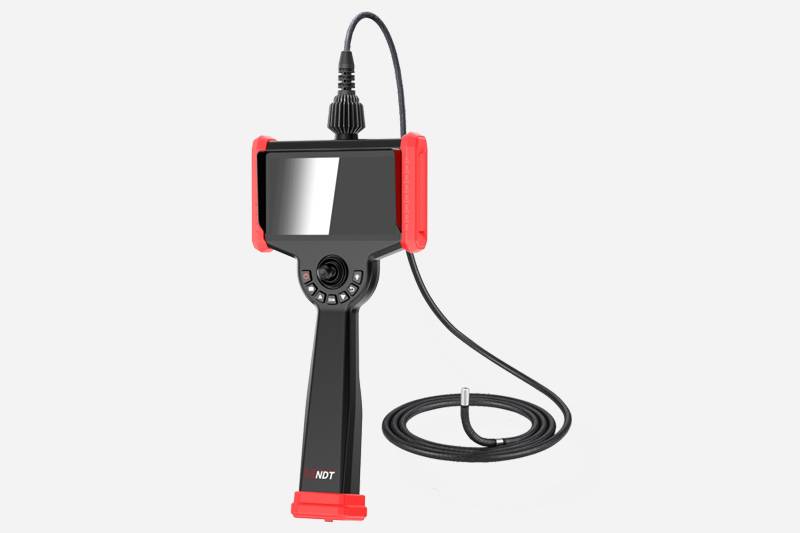

VS-P HD Handheld Industrial Endoscope
6-inch large screen, high-definition handheld endoscope
Probe diameter: 0.95-8mm can be customized
Pipeline length: 0.5-10m, the longest customized 30m
Camera pixel: ≥1 million
Suitable for the detection of aviation manufacturing, automobile manufacturing, industrial manufacturing, wind power and other fields.
Probe diameter: 0.95-8mm can be customized
Pipeline length: 0.5-10m, the longest customized 30m
Camera pixel: ≥1 million
Suitable for the detection of aviation manufacturing, automobile manufacturing, industrial manufacturing, wind power and other fields.

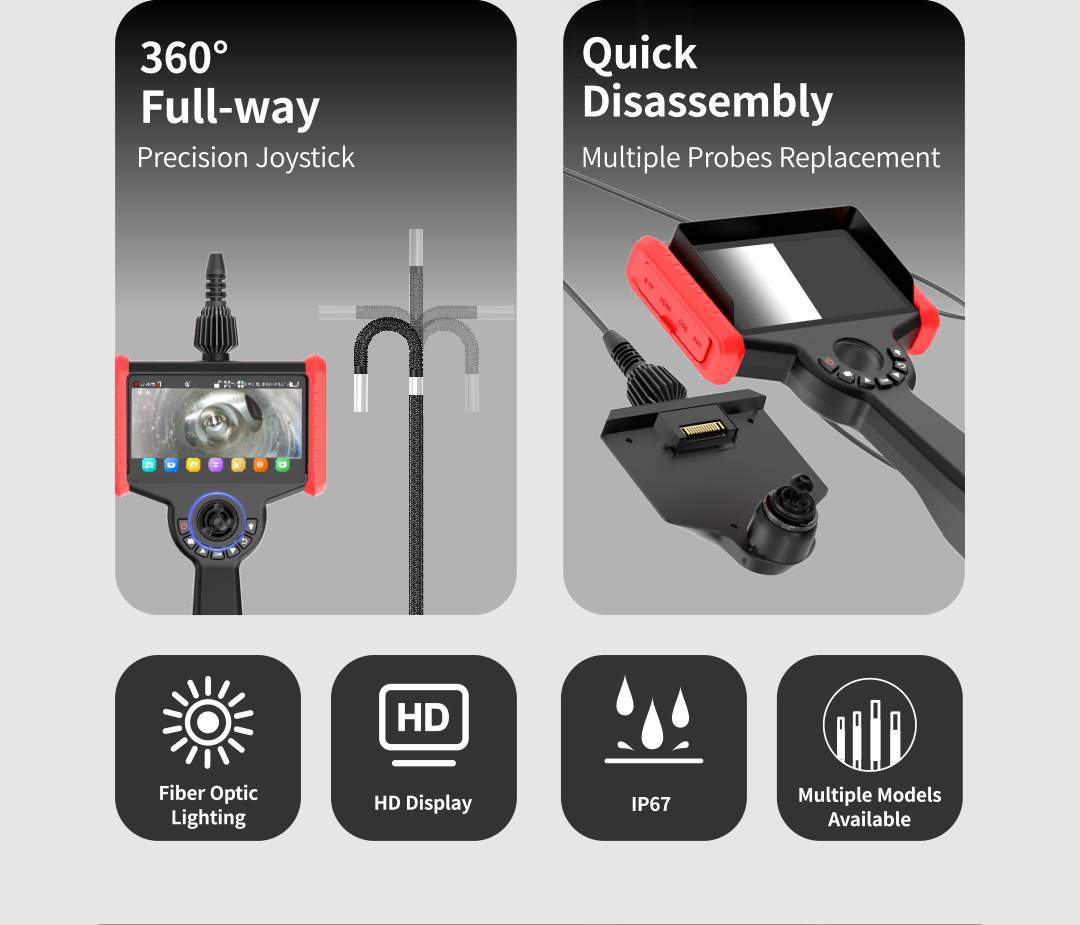

Introduction to VS-P button

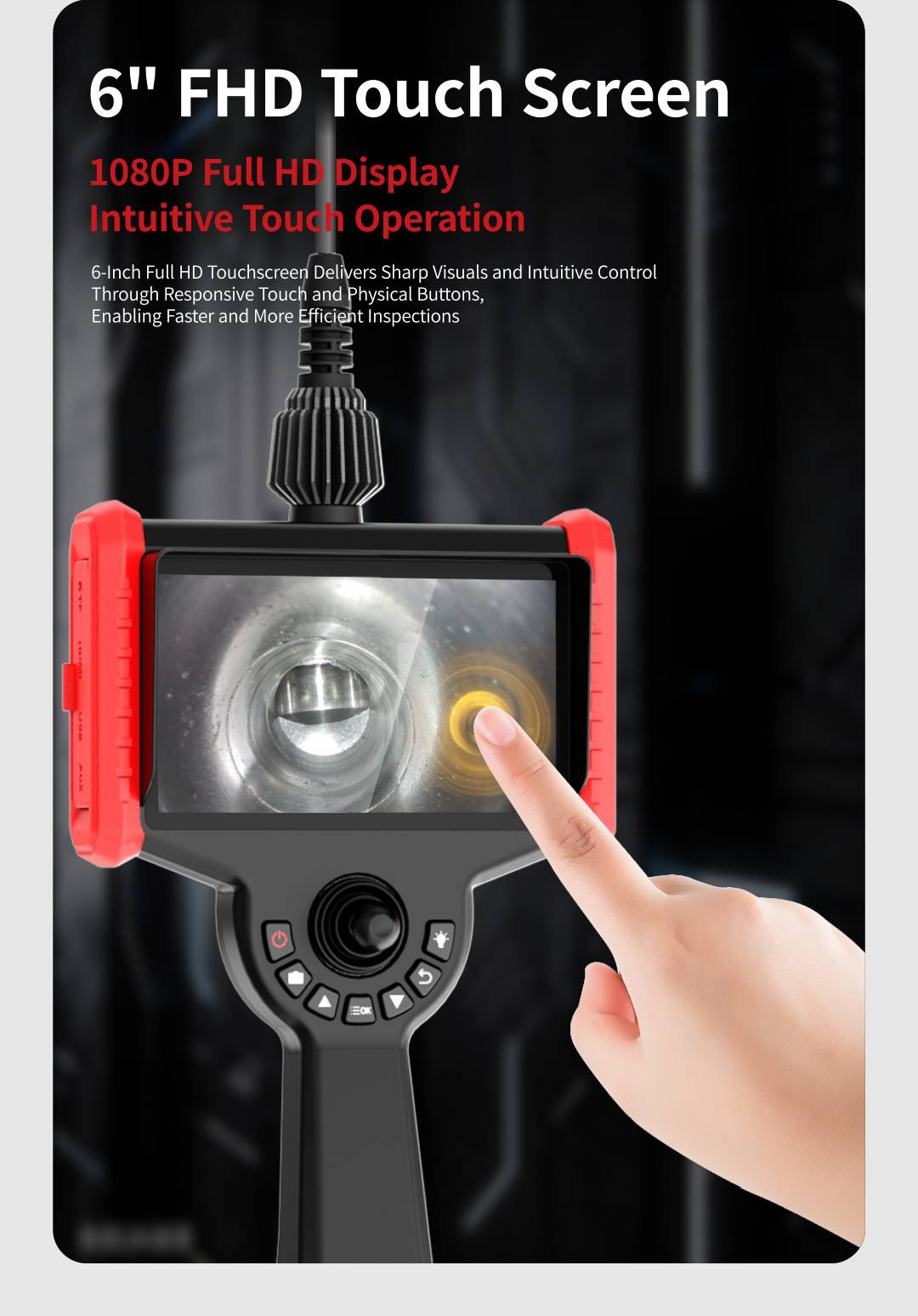

6"FHD Touch screen
1920X1080 pixeldisplay

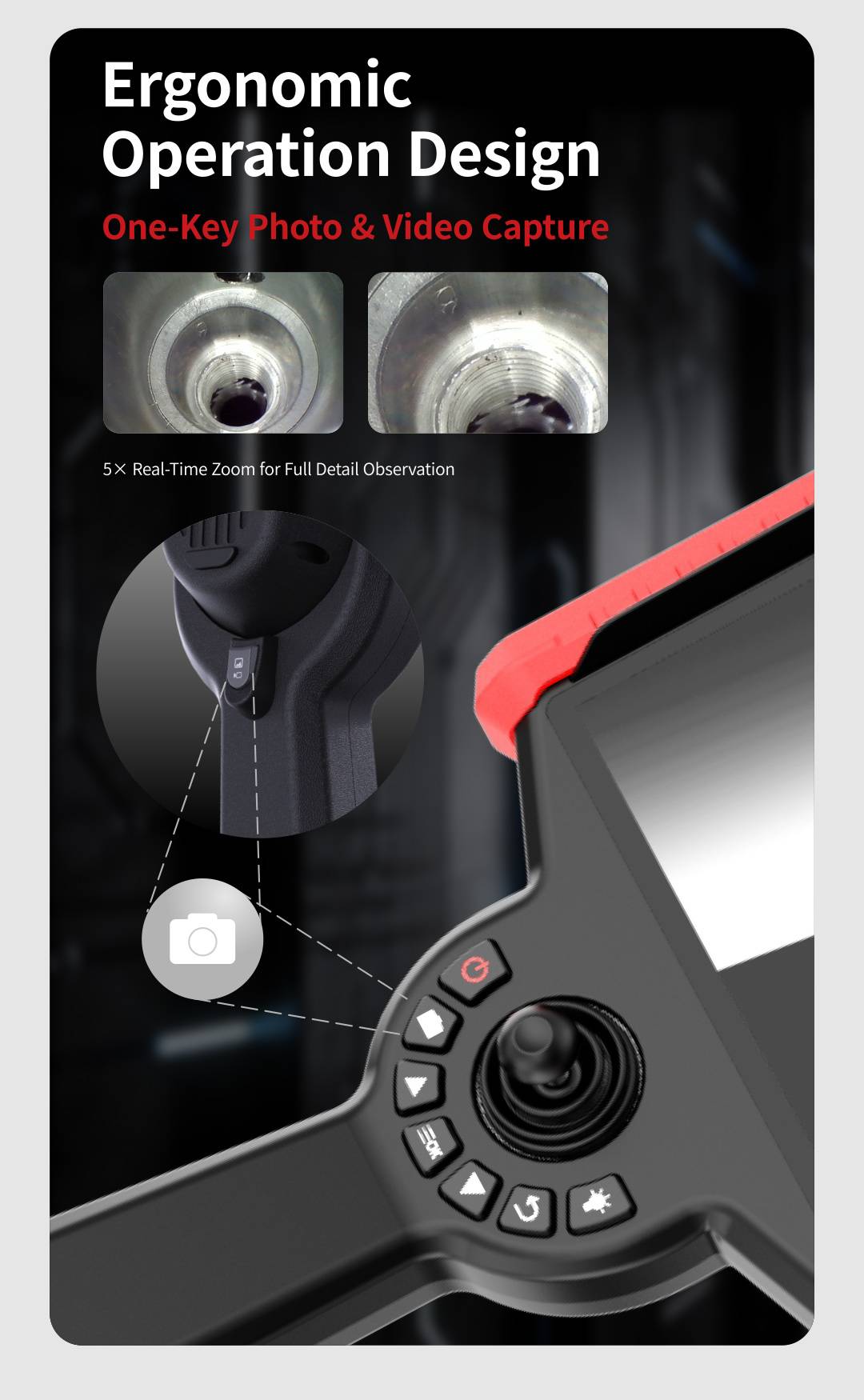

Dual operation of screen buttons

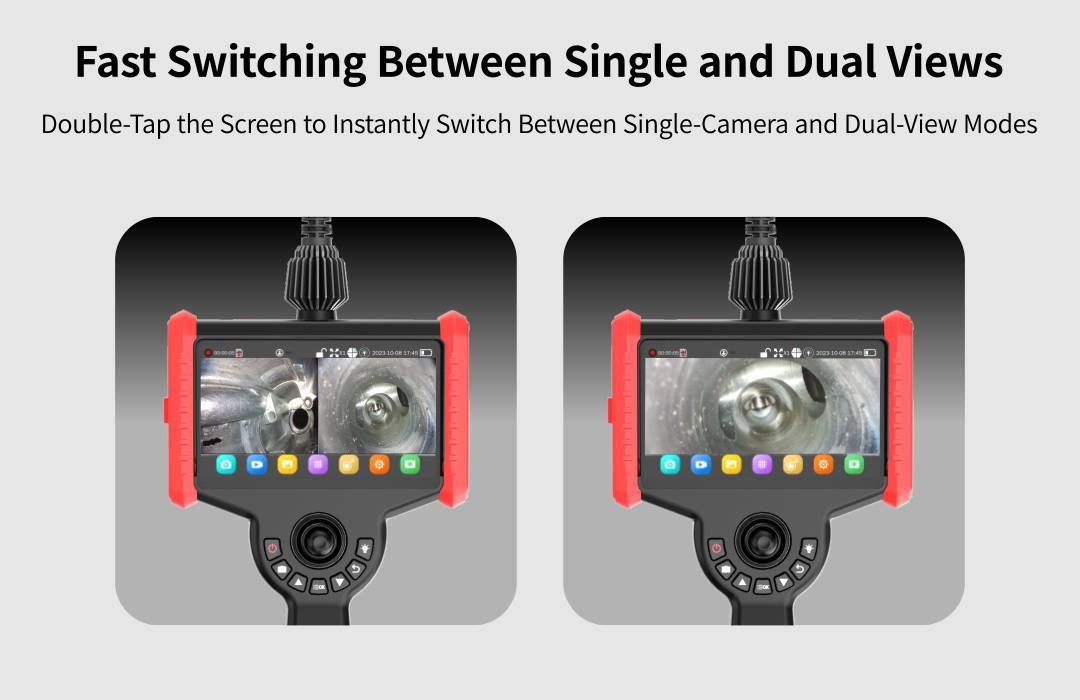

Quick switching
between single/dual view
- Click once to hide the menu icon on the screen
- Click twice on the screen to switch between single and dual camera views

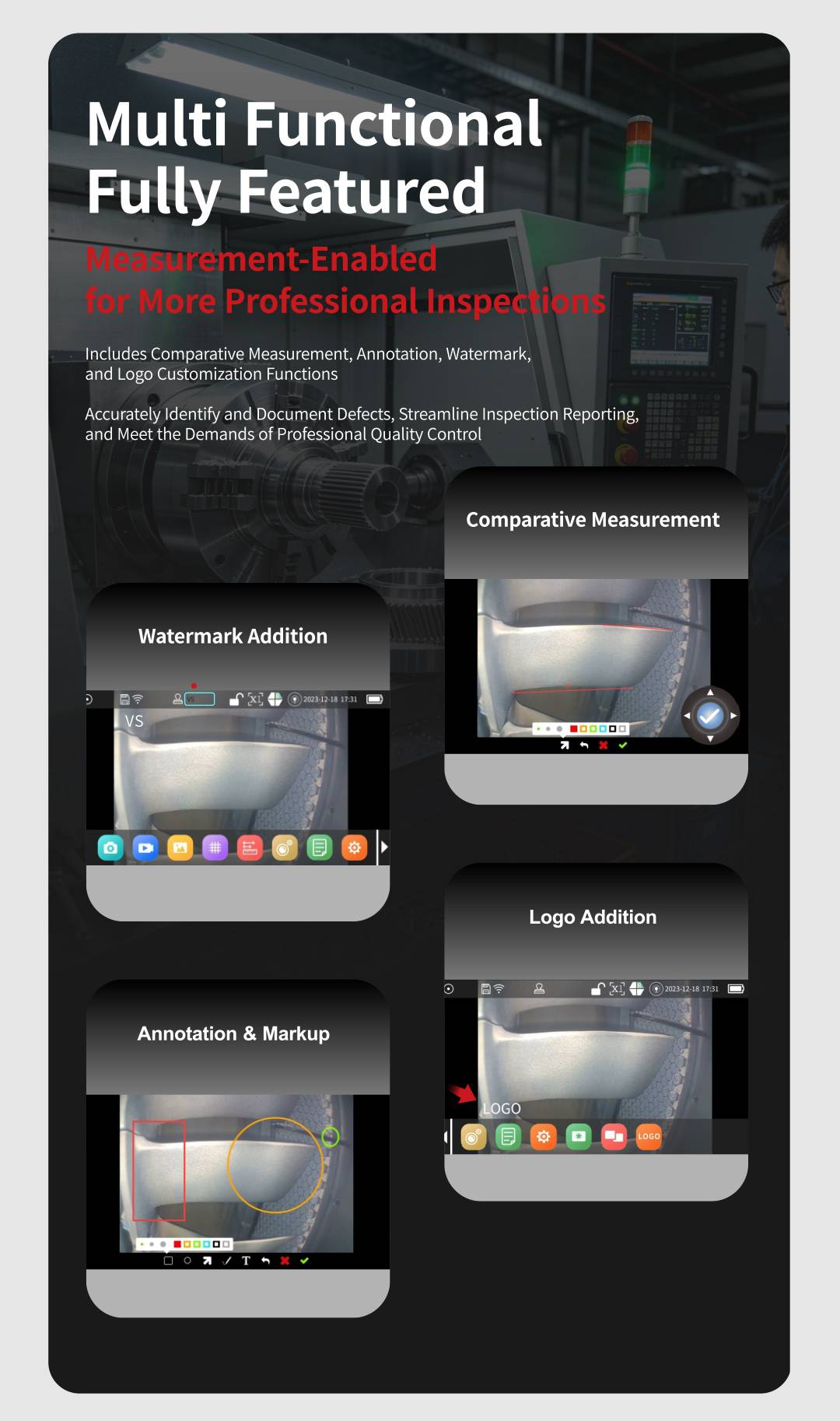

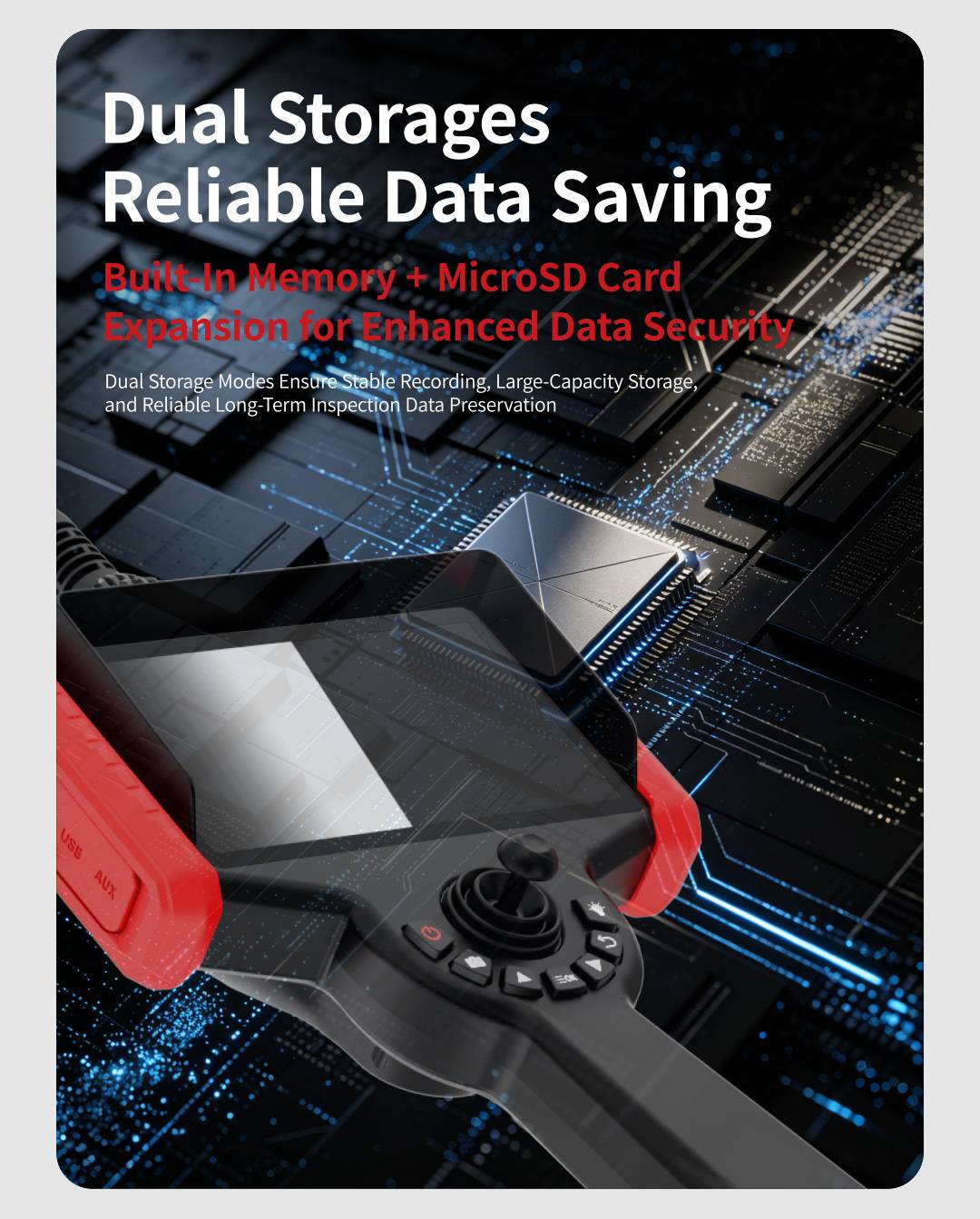

Built in Storage
Support for TF cards Increase storage space

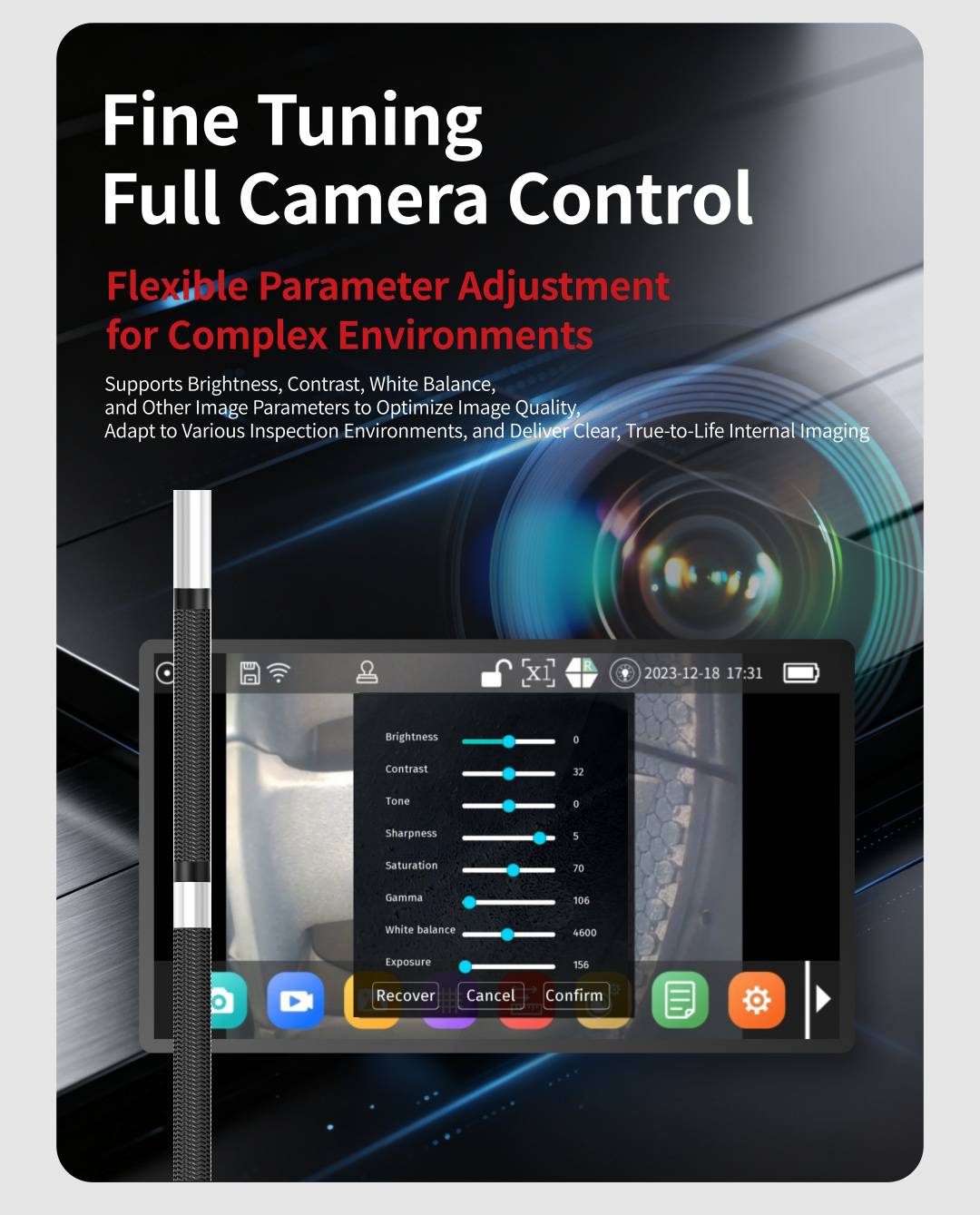

Camera settings
Adjustfreely accordingto needs to achieve optimalresults

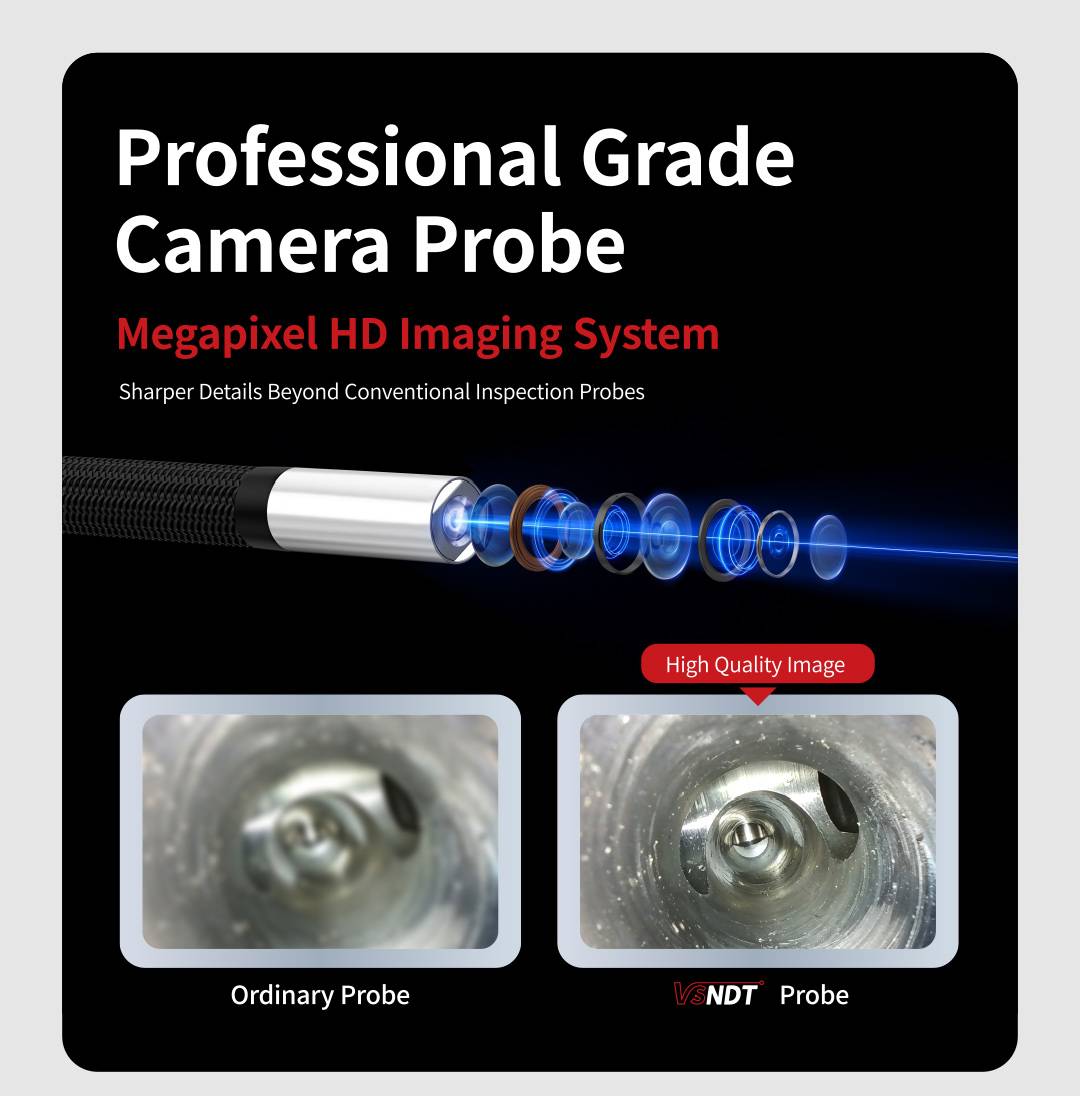

Megapixel
Capture every detail with new technology camera
Optical fiber lighting
Customizable single/dual light sources

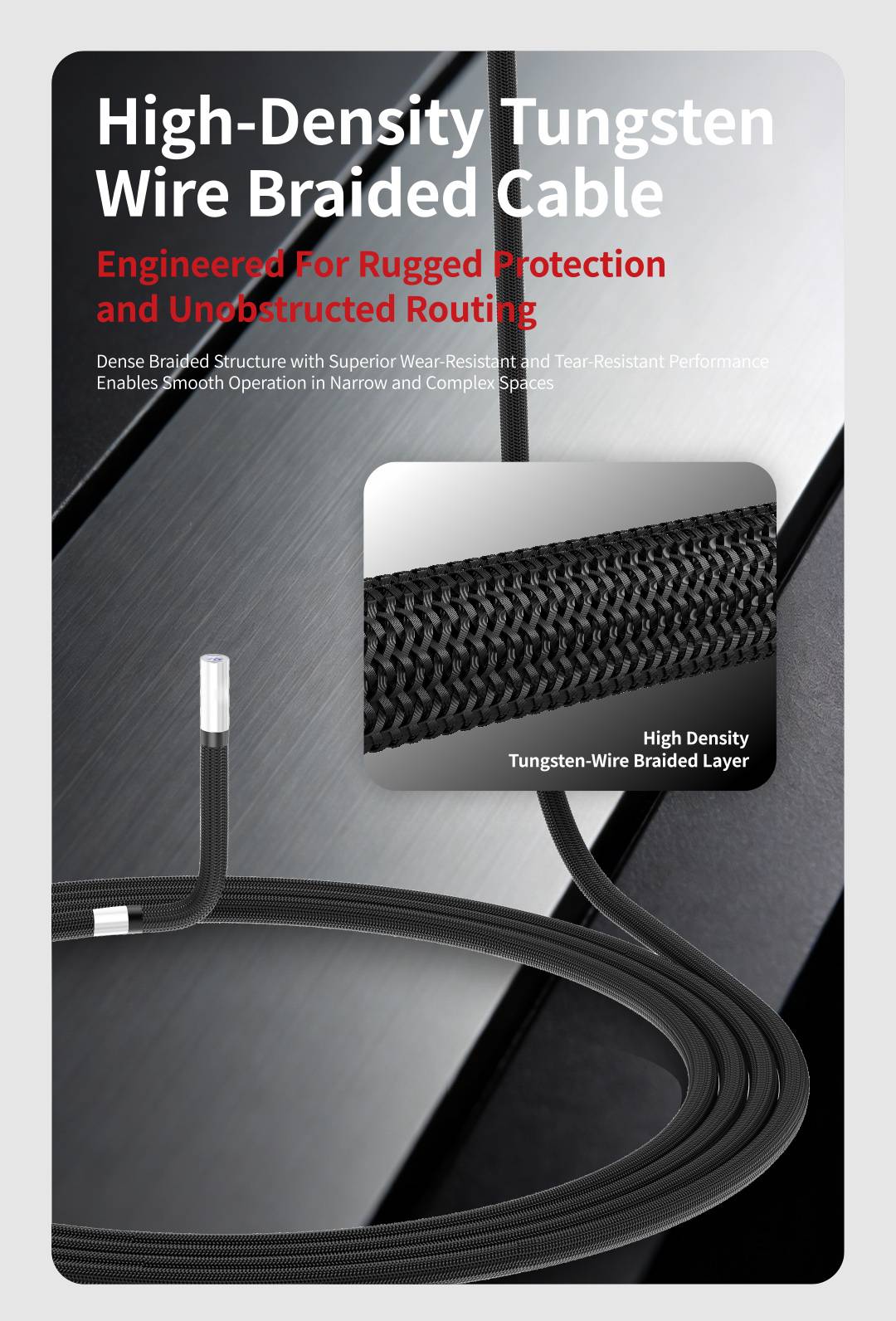

High density tungsten wire material
360 degree ergonomic designs structure with
good durability and corrosion resistance
0.95~8mm probe diameters for optional
IP67 waterproof and oil proof
The snake tube has the performance of heat insulation and chemical corrosion
protection line，and can easily cope with the working environment with oil and water stains

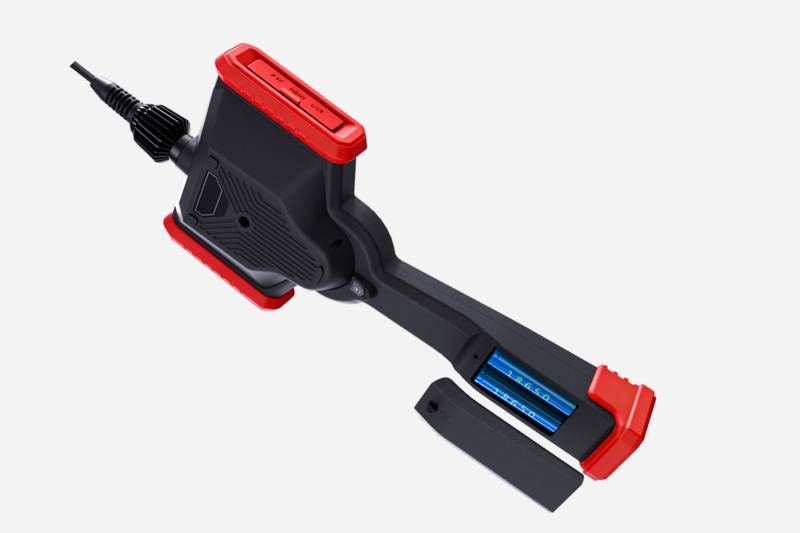

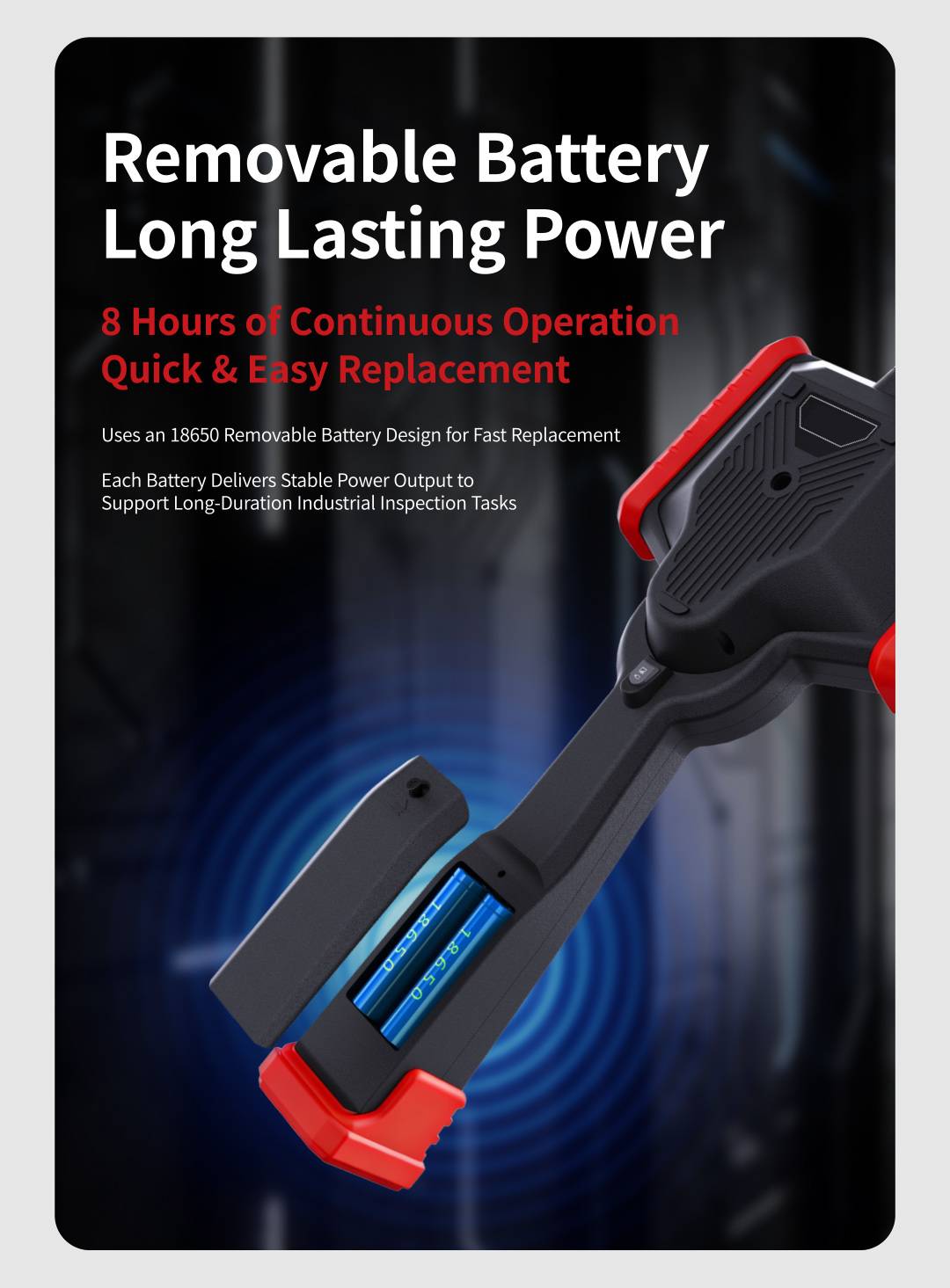

Use 18650 battery
Long term endurance, coping with various complex environments and improvingefficiency

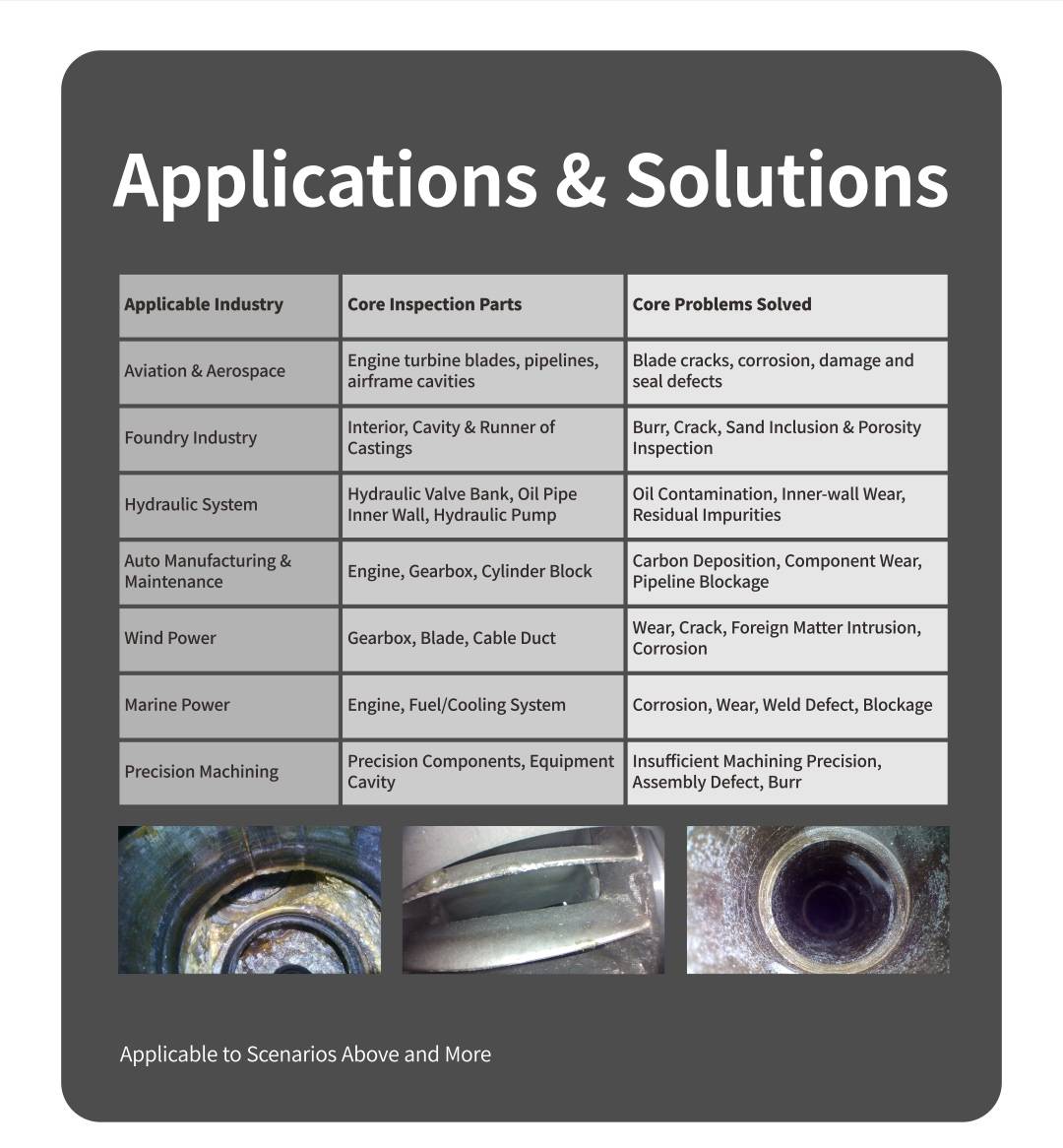

Application
It has a wide range of applications and can be used in a variety of endoscope detection scenarios
| Product name | VS-P HD Handheld Industrial Endoscope | ||
| Explain | VS-P series HD handheld industrial endoscope is a 6 inch screen endoscope independently developed by VSNDT. It has Mega pixel, clear and delicate picture quality, and the precision tungsten wire braided tube is durable and 0.95-8mm diameter pipelines can be replaced independently,with detachable battery, dual circuit design, single battery can also work. The remote WIFI connection function of the mobile phone can be customized independently, suitable for the detection of aviation manufacturing, automobile manufacturing, industrial manufacturing, wind power and other fields. | ||
| Advantage | 360° full way articulation | ||
| Rear high power LED optical fiber illumination | |||
| Quick to interchange different types of probes | |||
| Support WIFI（Optional） | |||
| 0.95mm~6mm probe diameters for optional | |||
| Mega pixel HD camera | |||
| 6″ HD large screen | |||
| Use 4pcs 18650 batteries,Working time ≥ 8 h | |||
| Function | Video recording function | ||
| Photograph function | |||
| Time Watermark | |||
| 8 level brightness | |||
| Support multiple system languages | |||
| Analog scale | |||
| Use environment | Aerospace manufacturing，Car manufacturer，Industrial manufacturing，Wind power | ||
| Probe | Wear resistant four layer tungsten wire weave | ||
| 1、High density braid outer layer 2、Flexible polyurethane inner layer 3、EPD Merosion resistant tubes 4、Compressive steeling 5、Guide steel wire | |||
| Probe is waterproof, oil resistant and anti corrosion It can work normally in water or oil for 30 minutes continuously. | |||
| Camera | IP67 protection grade | ||

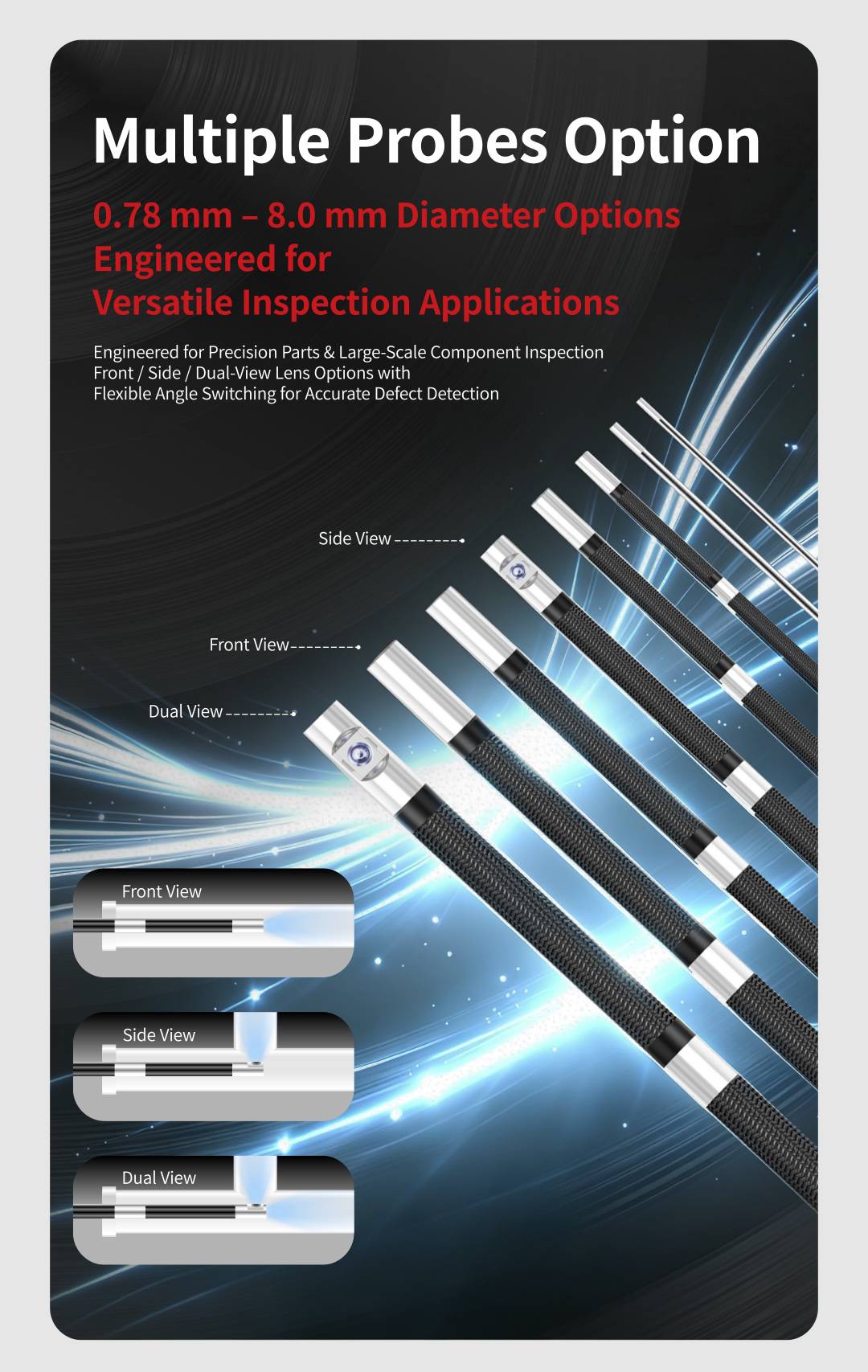

| Direct view/Side view/Dual view probe/Interchangeable probe | |||
| Host | HD large screen | ||

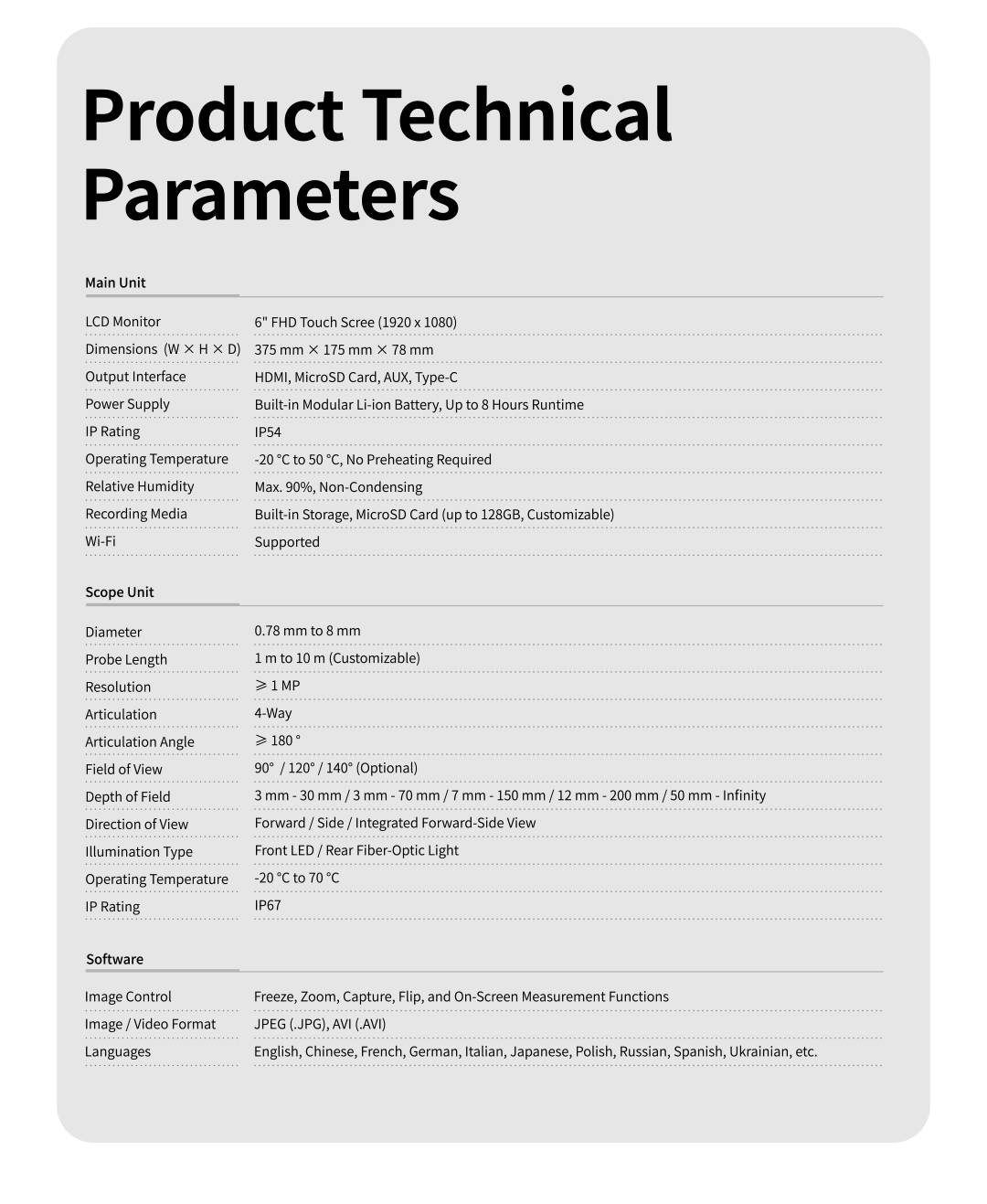

| Product technical parameters | Host | Display | 6＂ HD large screen（1920x1080） |
| Dimension | 375*175*78mm | ||
| Output | Type-C, TF card slot, HDMI interface, AUX interface | ||
| Power | ≥8h | ||
| IP Grade | IP54 | ||
| Operating temperature | -20℃~50℃, Low temperature without preheating | ||
| Storage Temperature | -20℃-60℃ | ||
| Relative Humidity | Max 90%, No condensation | ||
| Storage card | TF card 32GB(Other customized) | ||
| Camera Probe | Probe Diameter | 0.95mm~8mm | |
| Pixel | ≥1.0MP | ||
| Length | 1~10m(other customized) | ||
| Articulation | 360° full way articulation | ||
| Max swing head angle | ≥180° | ||
| DOF | 3mm~30mm/3mm~70mm/7~150mm/12~200mm/50~infinity | ||
| FOV | 90°/120°/140°(Optional) | ||
| Viewing angle | Front view/Side view/Dual view probe | ||
| Illumination | Rear high power LED optical fiber illumination | ||
| Operating Temperature | -20℃~70℃ | ||
| IP Grade | IP67 | ||
| System / software | Image / video format | Image:JPEG(JPG), Video:AVI | |
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions | ||
| System language | Chinese,English,German,French,Russian,Spanish,Japanese and customized |
