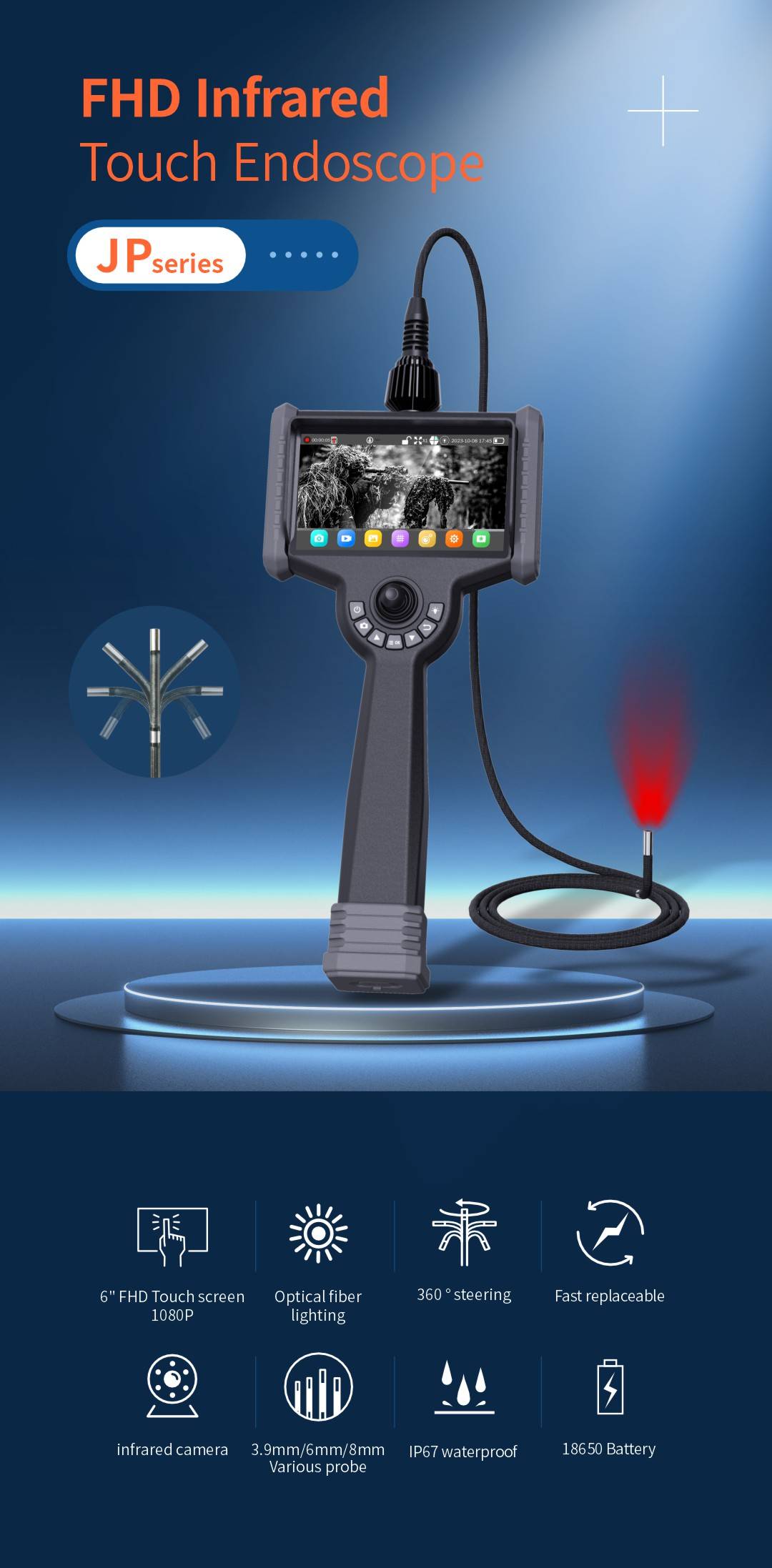

VS-JP series intelligent industrial videoscope
Hose sight glass, dual light source 6-inch large screen
Pipeline diameter: 3.9mm, 6mm
Light source: red light, white light dual light source
Pipeline swing head: 360° omnidirectional
Lighting type: rear high-power fiber optic light guide
The borescopes can be used for investigation, security, firefighting, customs inspection and other related situations;
Pipeline diameter: 3.9mm, 6mm
Light source: red light, white light dual light source
Pipeline swing head: 360° omnidirectional
Lighting type: rear high-power fiber optic light guide
The borescopes can be used for investigation, security, firefighting, customs inspection and other related situations;

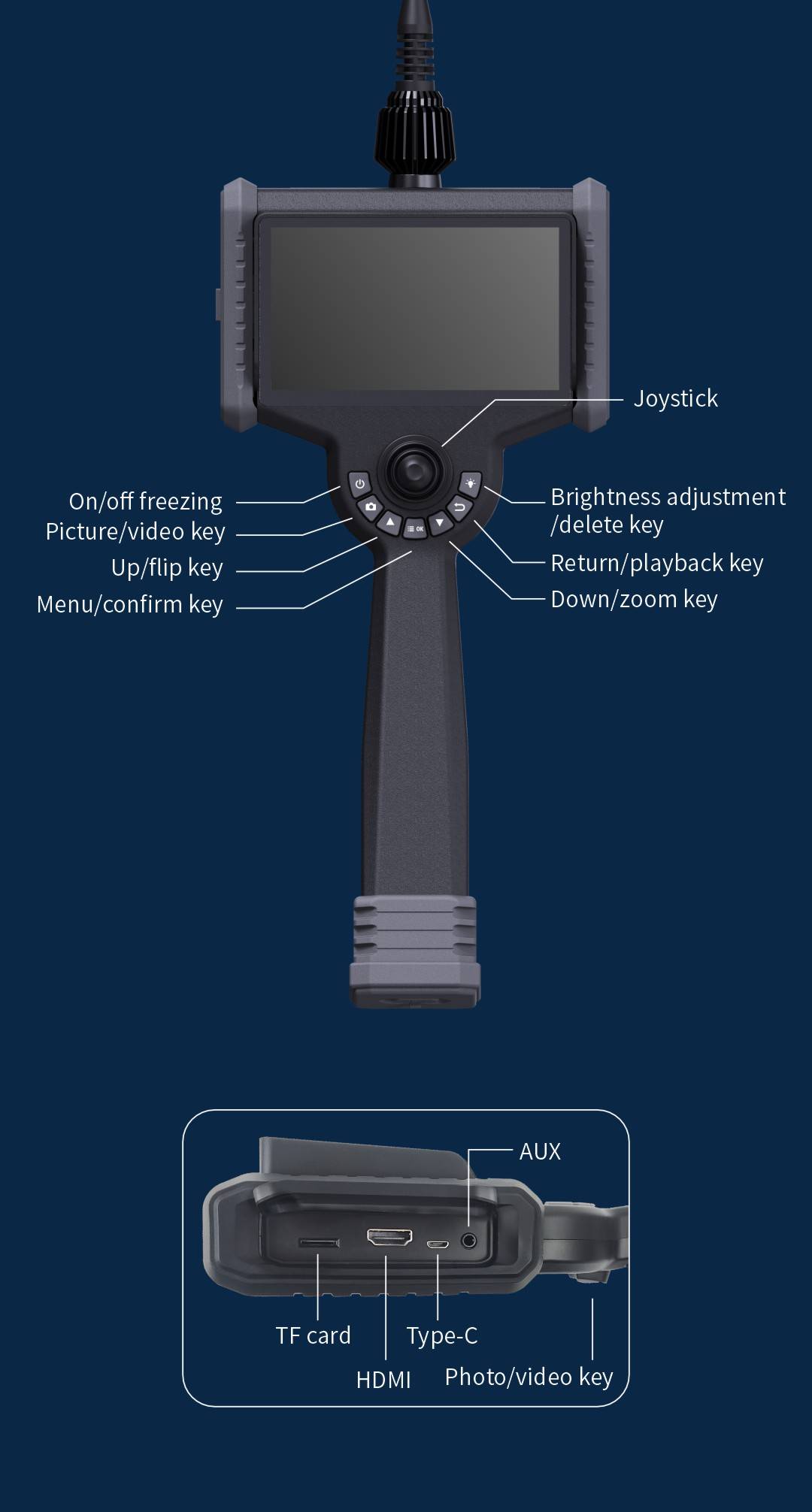

Introduction to VS-P button

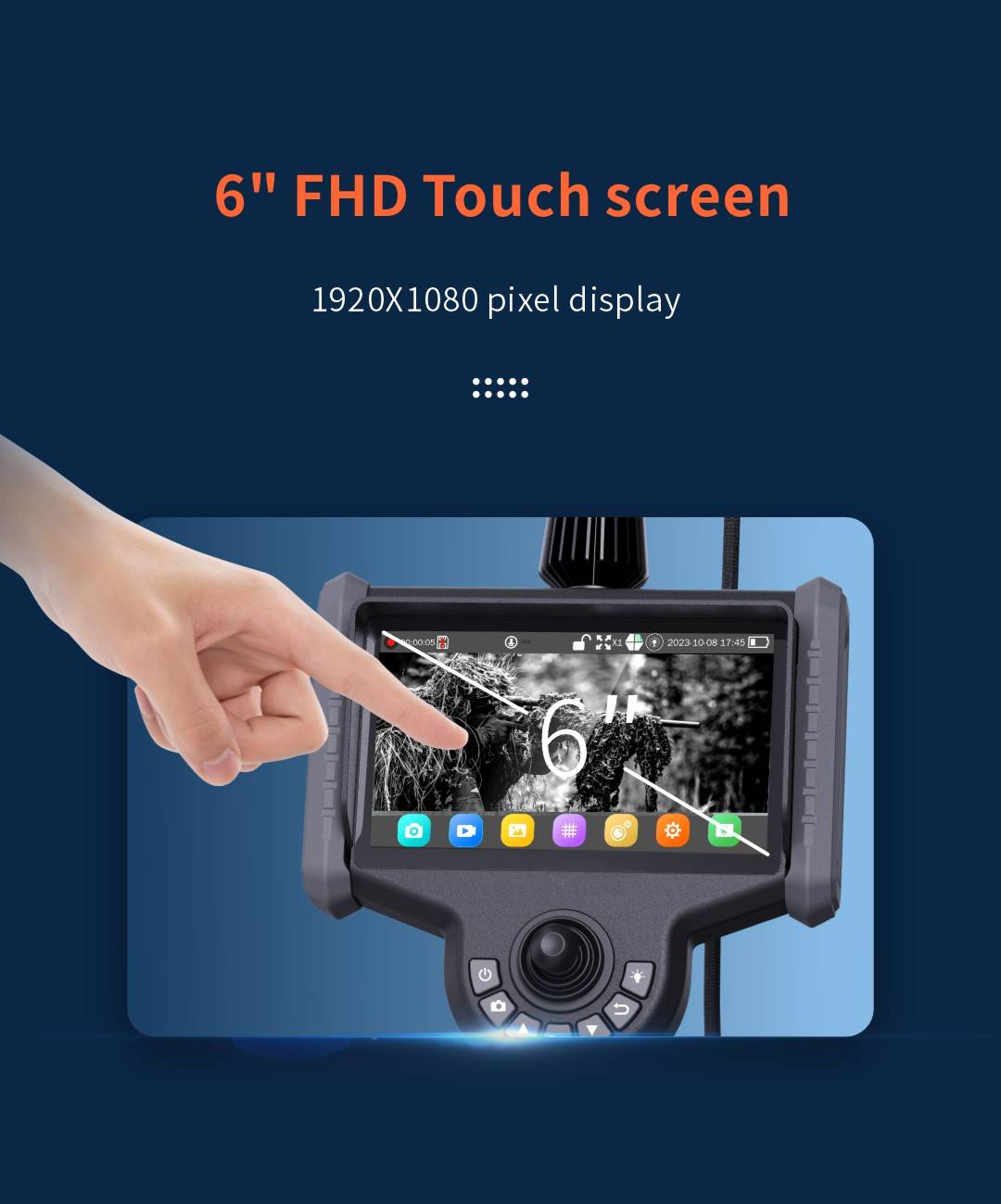

6"FHD Touch screen
1920X1080 pixeldisplay
Dual operation of screen buttons
Quick switching
between single/dual view
- Click once to hide the menu icon on the screen
- Click twice on the screen to switch between single and dual camera views

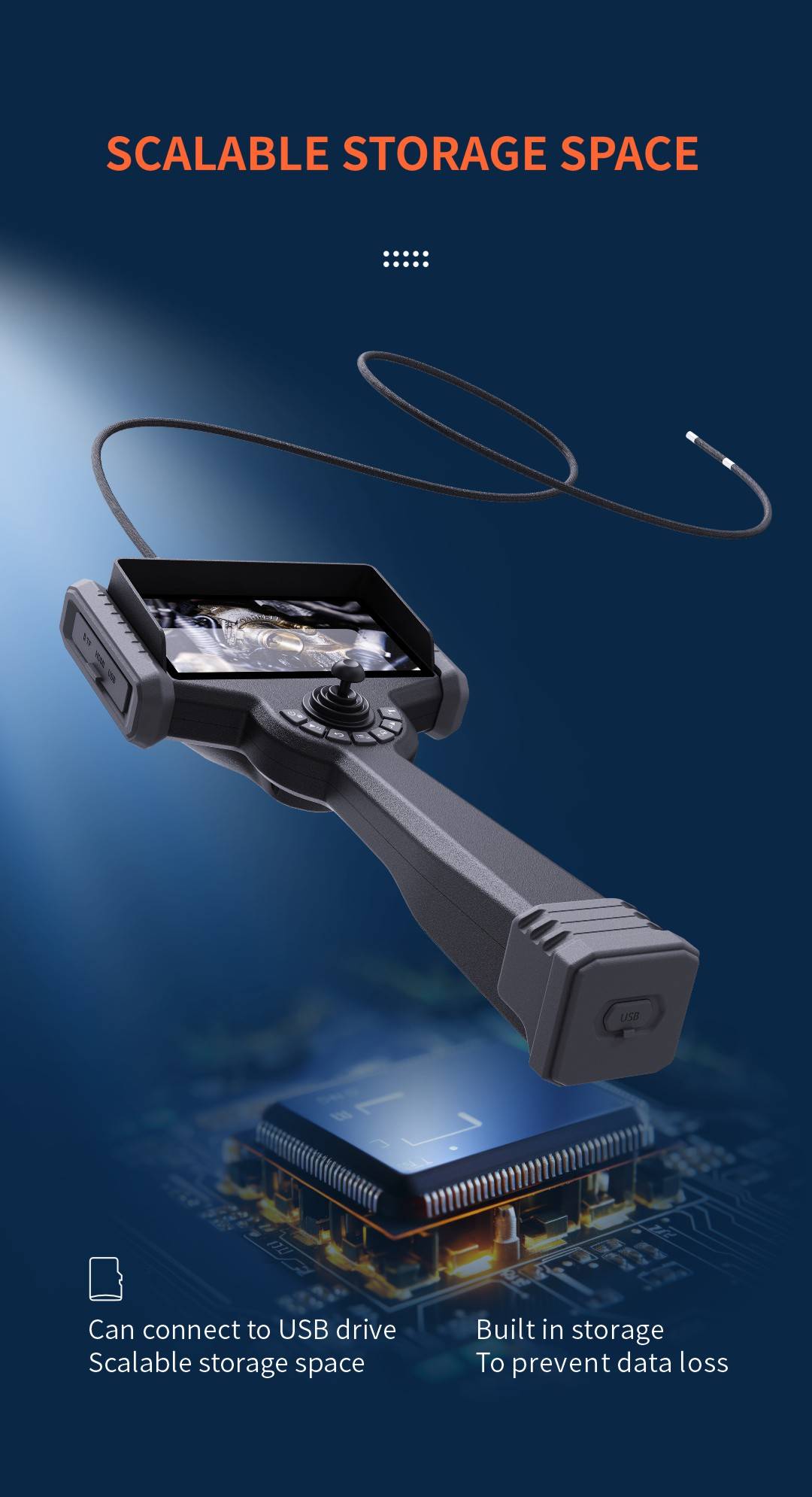

Built in Storage
Support for TF cards Increase storage space

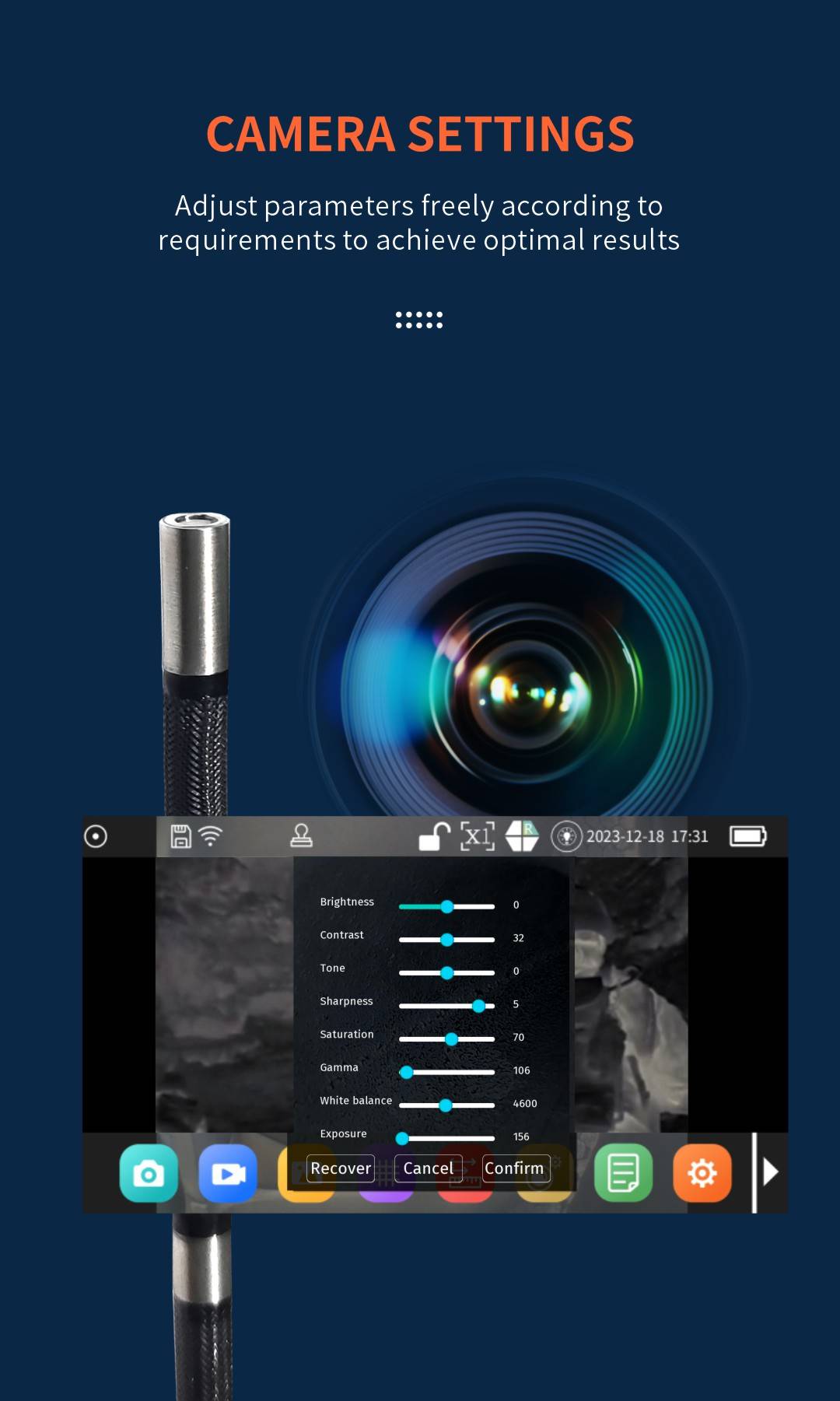

Camera settings
Adjustfreely accordingto needs to achieve optimalresults
Megapixel
Capture every detail with new technology camera

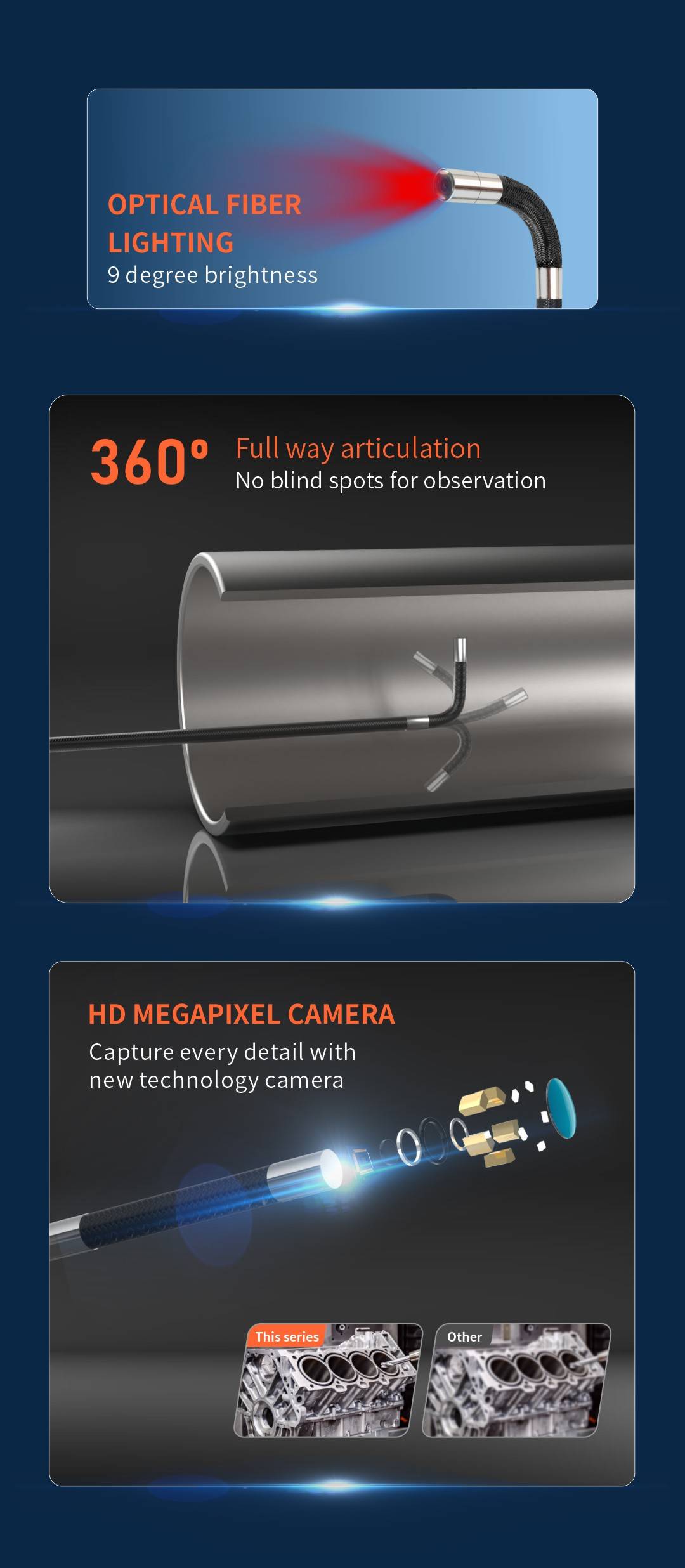

Optical fiber lighting
Customizable single/dual light sources

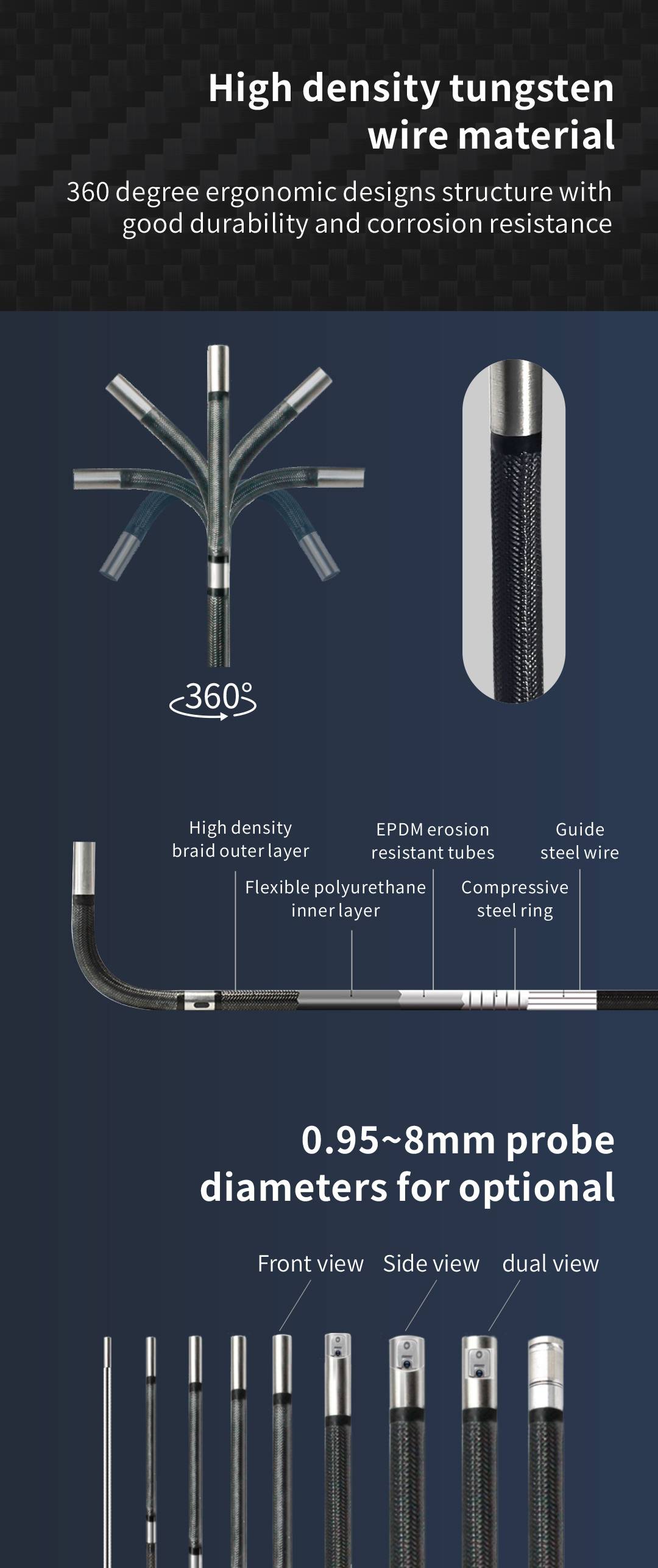

High density tungsten wire material
360 degree ergonomic designs structure with
good durability and corrosion resistance
0.95~8mm probe diameters for optional

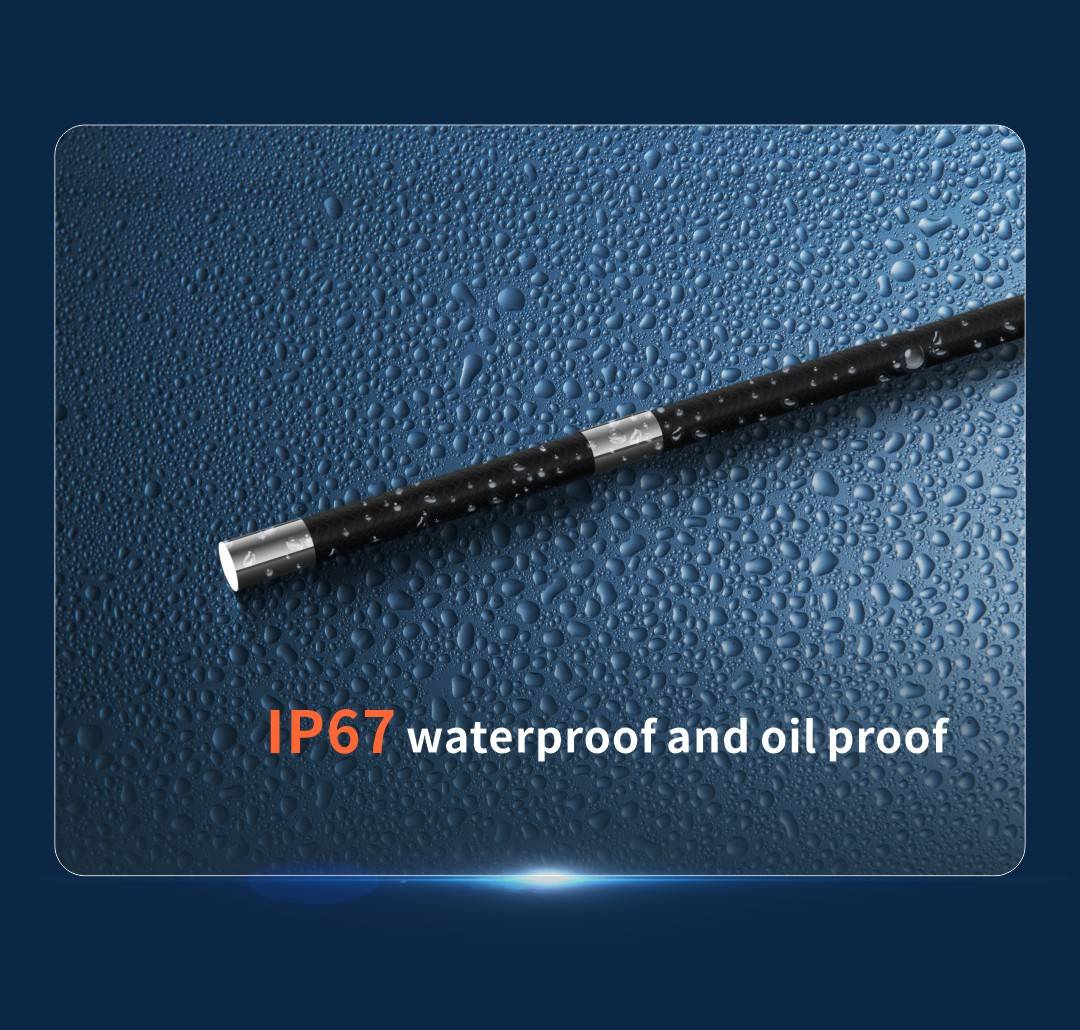

IP67 waterproof and oil proof
The snake tube has the performance of heat insulation and chemical corrosion
protection line，and can easily cope with the working environment with oil and water stains
Use 18650 battery
Long term endurance, coping with various complex environments and improvingefficiency
Application
It has a wide range of applications and can be used in a variety of endoscope detection scenarios
| Product name | VS-JP infrared HD observation endoscope | ||
| Explain | VS-JP series infrared HD endoscope is equipped with 6 inch 1080P LCD screen and sunshade, which can be clearly seen in the sun. The borescope is with megapixels ultra far infrared camera and can capture the abnormal points accurately in the dark. The borescope also supports real time recording and sound pickup functions to provide data collection support for investigation and evidence collection; The borescope probe uses high density tungsten braided material and with 360 degree articulation to improve detection efficiency; The borescopes can be used for investigation, security, firefighting, customs inspection and other related situations; | ||

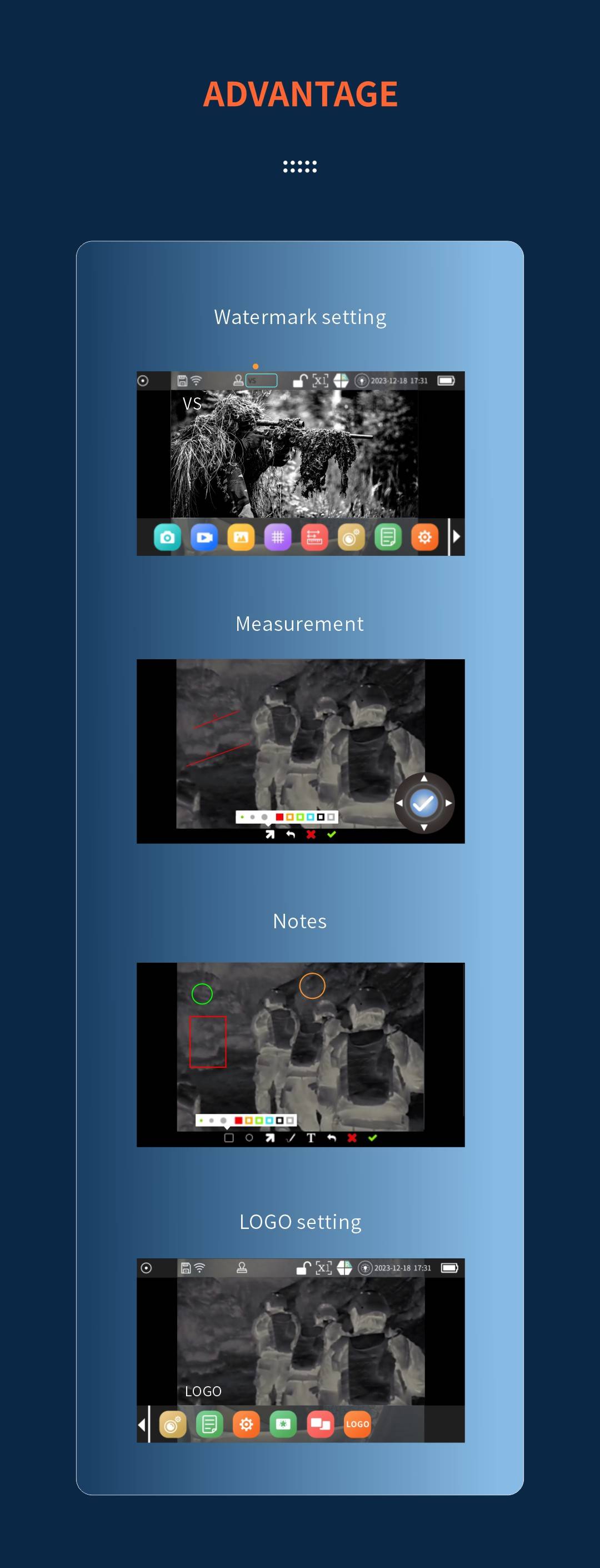

| Advantage | 360° full way articulation | ||
| Rear high power LED fiber optical illumination | |||

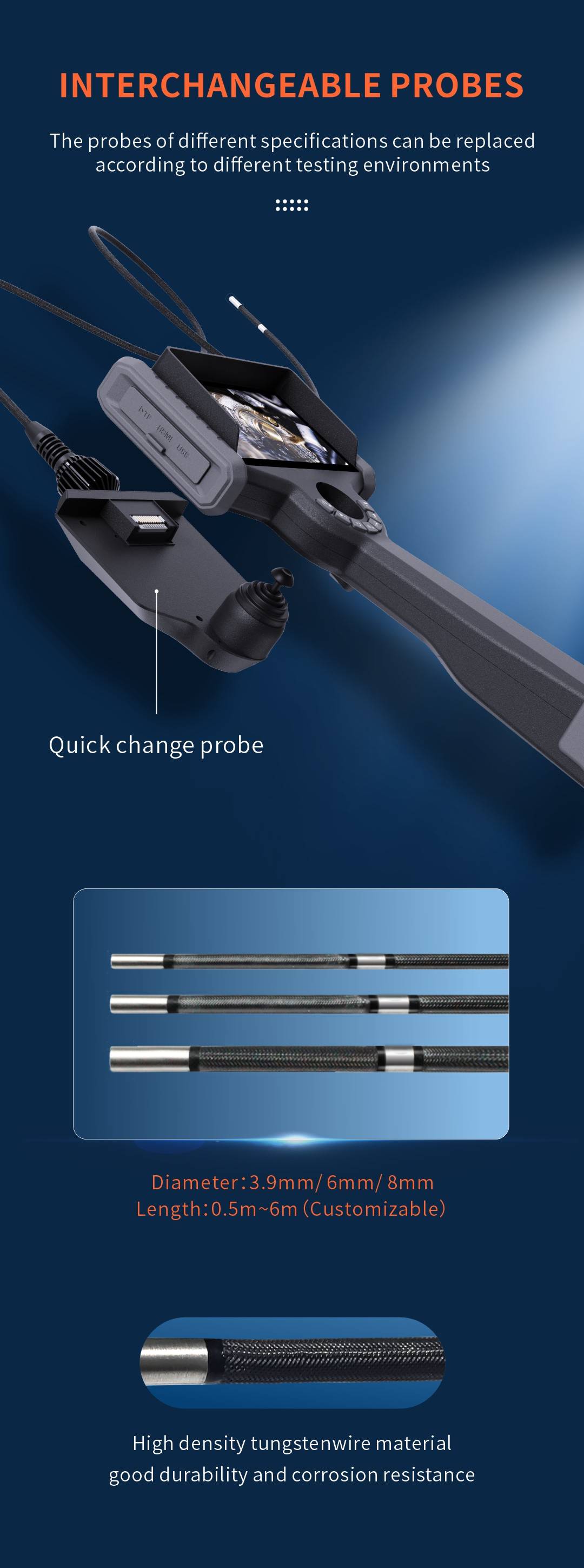

| Fast interchangeable different types of probe | |||
| Support WIFI（Optional） | |||
| 3.9mm、6mm Probe optional | |||
| Megapixel infrared HD camera | |||
| 6＂ HD large screen | |||
| Use 4PCS 18650 batteries, Working time ≥ 8 hours | |||
| Camera Voice pickup and recording function (Optional) | |||
| Function | Video recording function | ||
| Photograph function | |||
| Time Watermark | |||
| 8 degree brightness | |||
| Support multiple system languages | |||
| Analog scale | |||
| Probe | Wear resistant four layer tungsten wire weave | ||
| 1、High density braid outer layer 2、Flexible polyurethane inner layer 3、EPD Merosion resistant tubes 4、Compressive steeling 5、Guide steel wire | |||
| Probe is waterproof, oil resistant and anti-corrosion It can work normally in water or oil for 30 minutes continuously. | |||
| Camera | IP67 protection grade | ||
| Front view/Side view/Dual view probe | |||
| Host | HD large screen | ||
| Use environment | Anti terrorism rescue ，Forensic narcotics，Safe search and rescue，Covert surveillance | ||

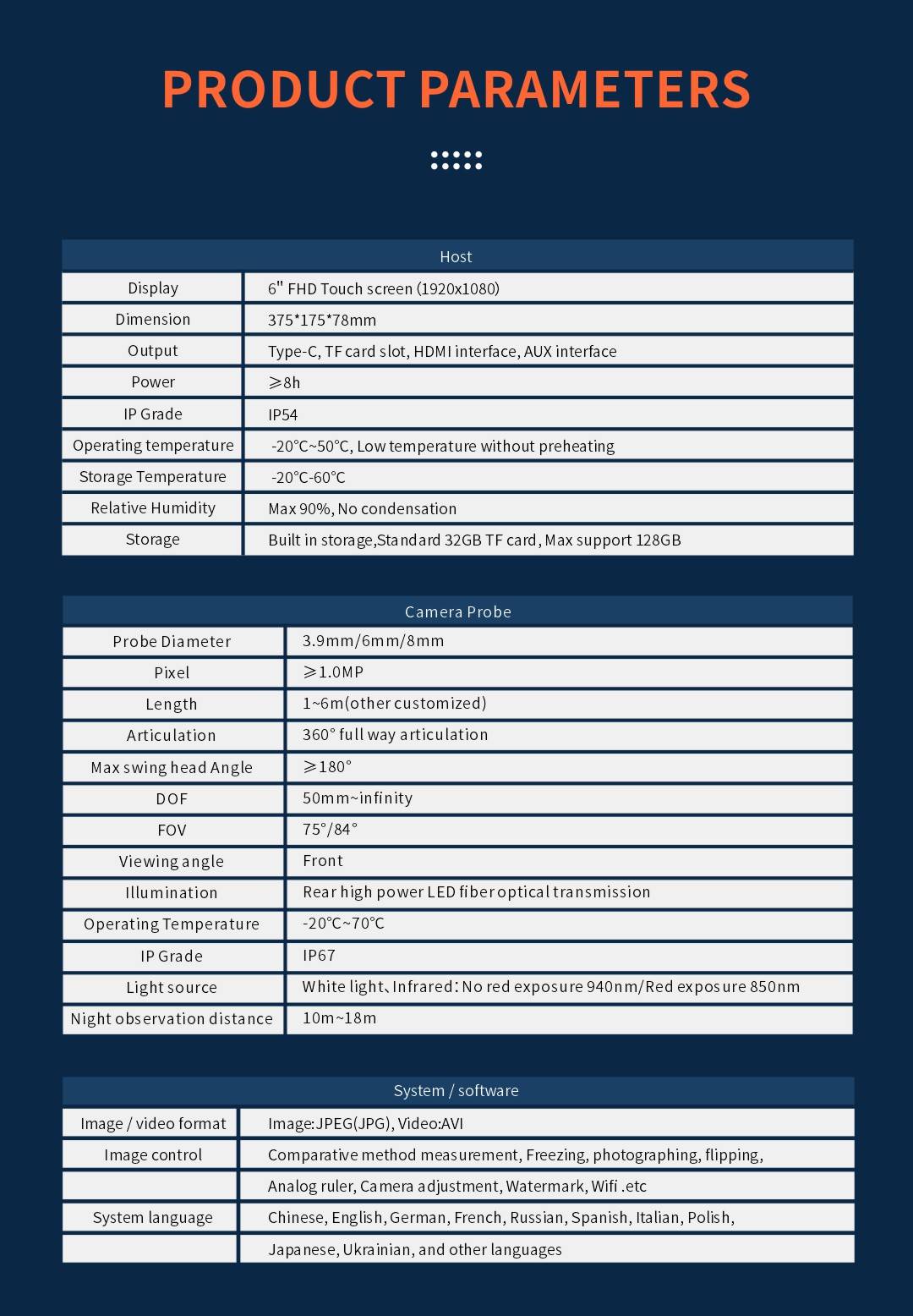

| Product technical parameters | Host | Display | 6＂ HD large screen（1920x1080） |
| Dimension | 375*175*78mm | ||
| Output | TF card slot, HDMI interface, Micro USB, AUX interface | ||
| Power | ≥8 hours | ||
| IP Grade | IP54 | ||
| Operating temperature | -20℃~50℃, Low temperature without preheating | ||
| Storage Temperature | -20℃-60℃ | ||
| Relative Humidity | Max 90%, No condensation | ||
| Storage card | TF card 32GB(Other optional) | ||
| Camera Probe | Probe Diameter | 3.9mm/6mm | |
| Pixel | ≥1.0MP | ||
| Length | 1~6m(other customized) | ||
| Articulation | 360° full way articulation | ||
| Max swing head angle | ≥180° | ||
| DOF | 50mm~infinity | ||
| FOV | 75°/84° | ||
| Viewing angle | Front view/Side view/Dual view probe | ||
| Illumination | Rear high power LED fiber optical transmission | ||
| Operating Temperature | -20℃~70℃ | ||
| IP Grade | IP67 | ||
| Light source | white light、infrared：No red exposure 940nm/red exposure 850nm | ||
| System / software | Image / video format | Image:JPEG(JPG), Video:AVI | |
| Image control | Freezing, zooming, photographing, flipping, video playback and analog ruler functions | ||
| System language | Chinese,English,German,French,Russian,Spanish,Japanese and customized |
